SWT508NX2S Touch Screen Computer Wire Twisting Peeling Stripping Cutting Machine Cable Stripper Twister Cutter Tools 0.1-4.0mm2

0
SWT508NX2S Touch Screen Computer Wire Twisting Peeling Stripping Cutting Machine Cable Stripper Twister Cutter Tools 0.1-4.0mm2


Price: [price_with_discount]

SWT508NX2S Touch Screen Computer Wire Twisting Peeling Stripping Cutting Machine Cable Stripper Twister Cutter Tools 0.1-4.0mm2

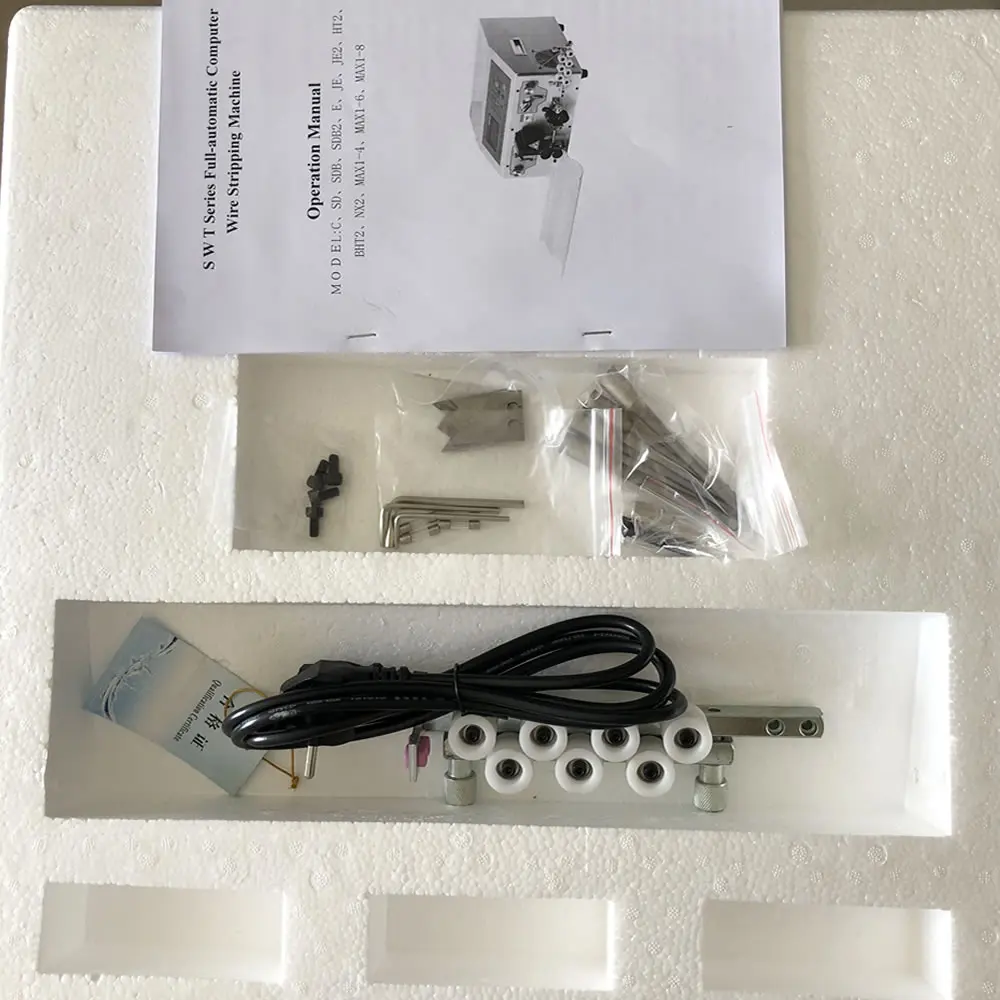

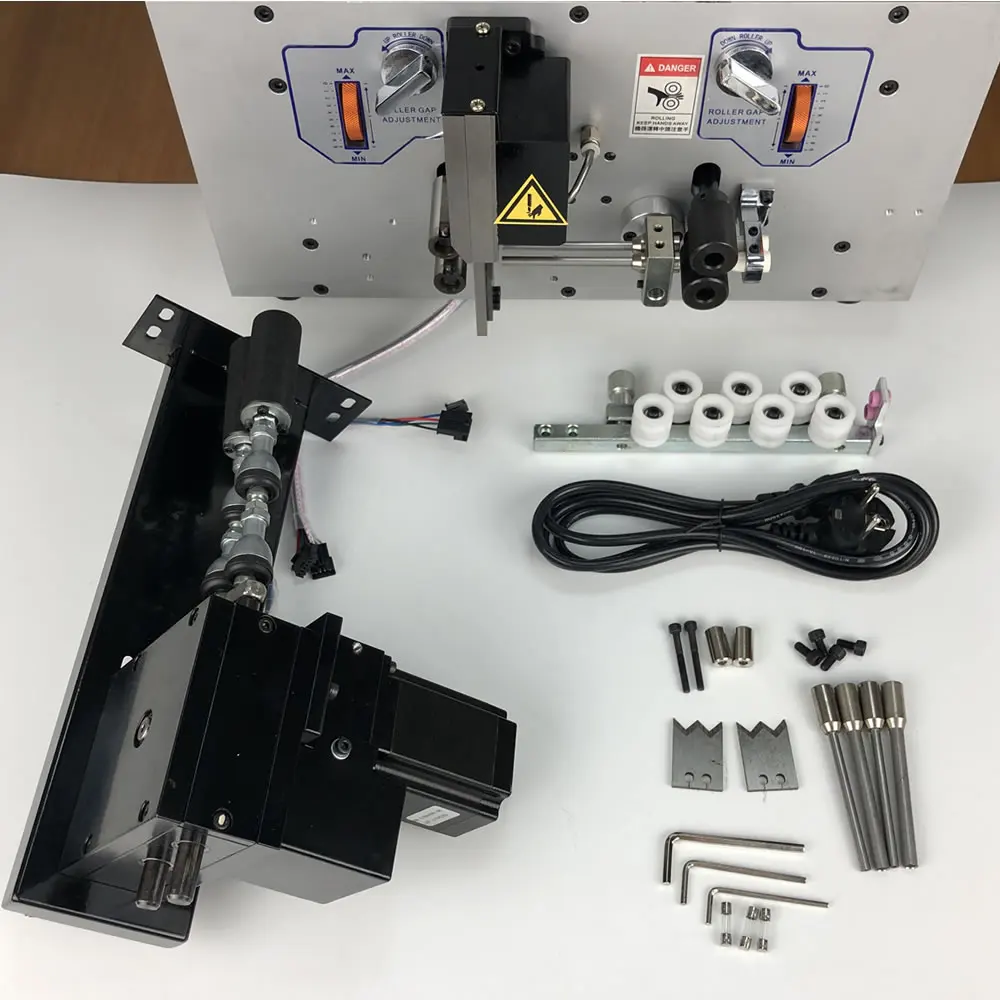

P.S: The wire accumulating board and defend cowl isn’t embody. in the event you want add. please contact vendor.
Introduction

1). SWT Series Full-automatic Computer Wire Stripping Machine made by our manufacturing unit is appropriate for slicing, head-stripping, tail-stripping and middle-stripping of single –strand, multi-strand and sheath wire.

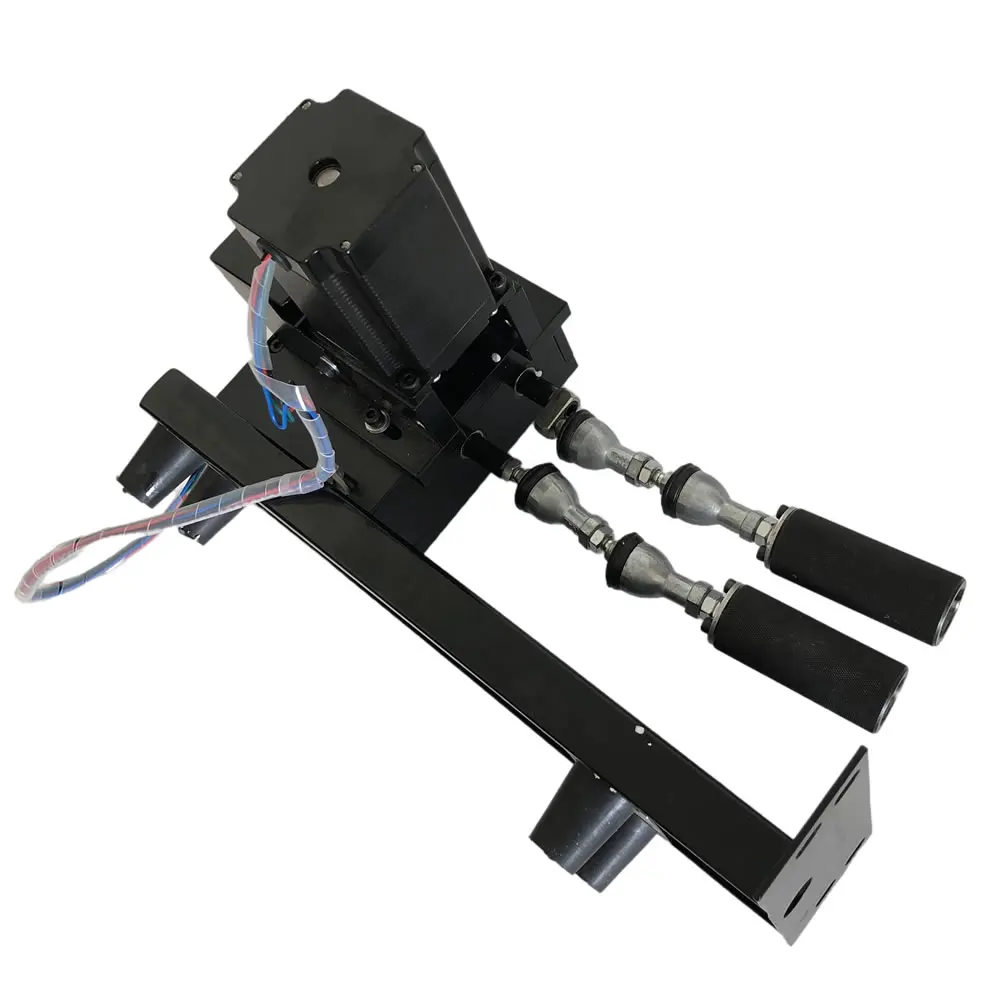

2). SWT508-NX2 is appropriate for stripping and twisting tremendous quick wires with shortest wire of 20-29mm;

3). With rollers lifting perform when stripping Wire Head,SWT508-HT2 is appropriate for stripping sheath wire particularly for sheath wire of lengthy Wire Head and Wire Tail.

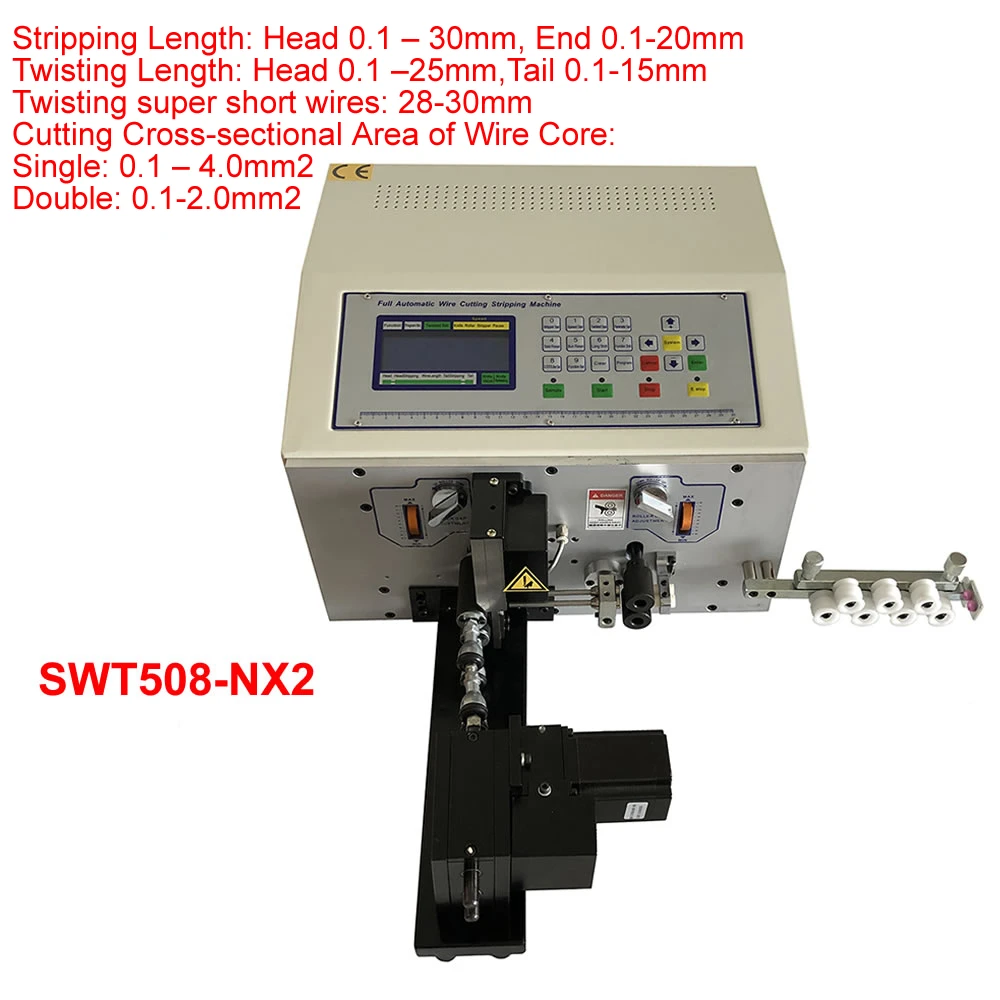

Model: SWT-508NX2——Key Control

Overall Dimensions: 450mm×420mm×290mm

Power: 350W

Voltage: 220V/110V

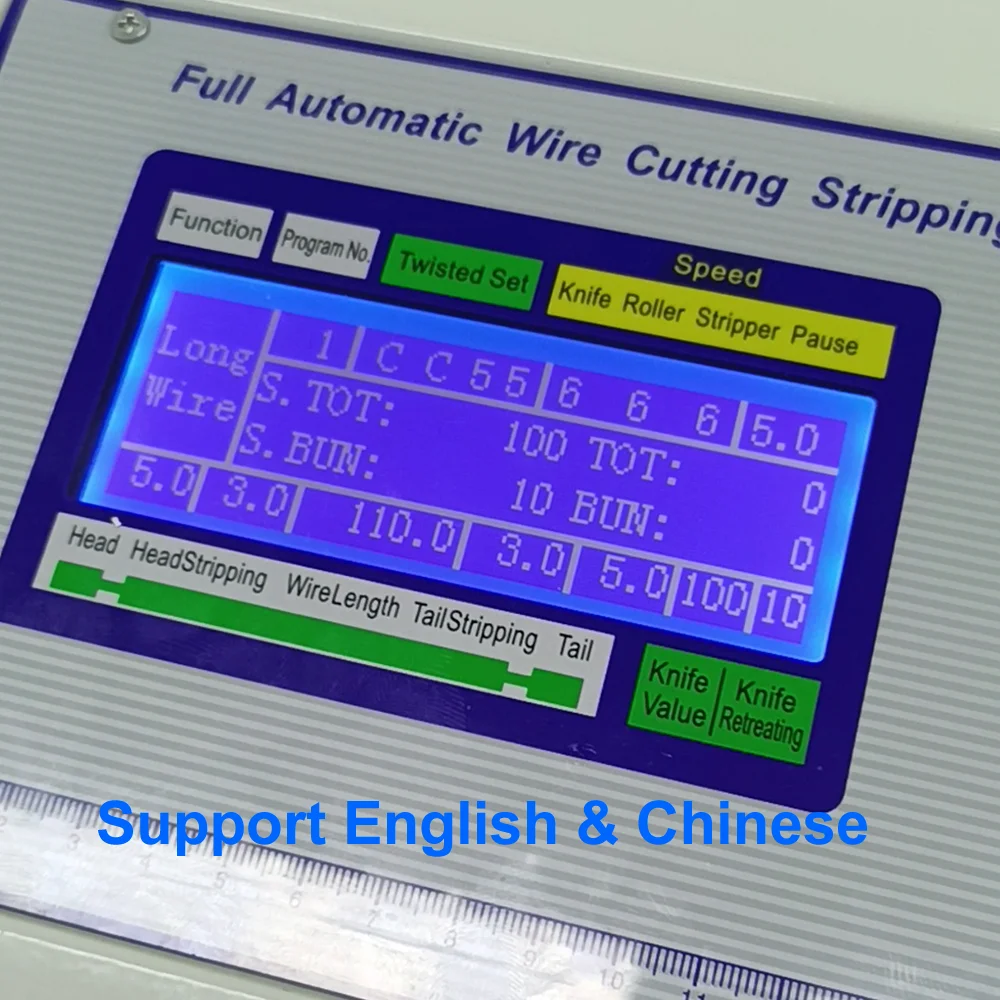

Mode of Display: LCD Liquid Crystal Display Screen in English and Chinese

Cutting Length: 0.1mm – 100000mm

Cutting Tolerance: ≤0.002×L (L = Cutting Length)

Stripping Length: Head 0.1 – 30mm, End 0.1-20mm

Twisting Length: Head 0.1 –25mm,Tail 0.1-15mm

Twisting tremendous quick wires: 28-30mm

Cutting Cross-sectional Area of Wire Core:

Single: 0.1 – 4.0mm2

Double: 0.1-2.0mm2

Maximum Diameter of Conduit Pipe: ¢6

Knife Material: High-quality Tungsten Steel

Stripping Speed: Length 100mm, 3000 – 6000 pcs/h

Mode of Driving: Four-wheeled Drive (Silent hybrid stepping motor, every step 0.1mm ahead)

Adjusting Speed: 0 Slowest, 9 Fastest

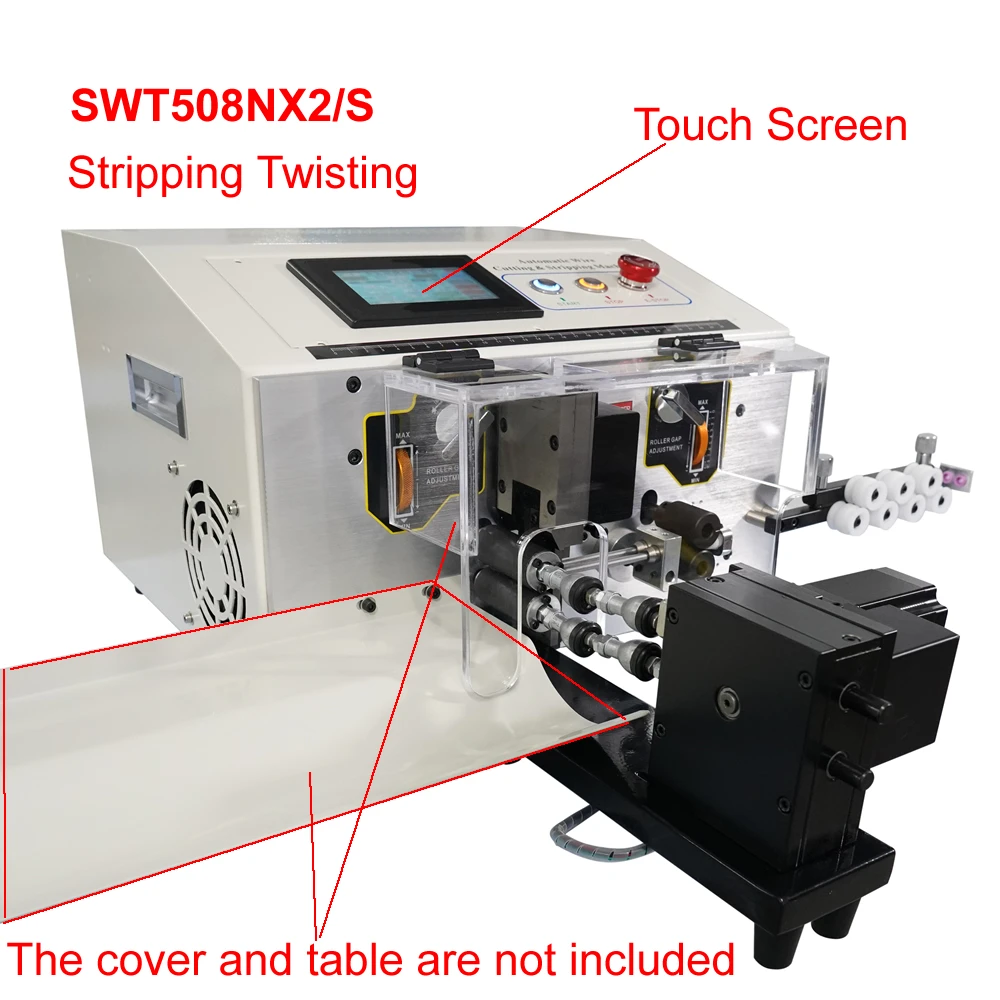

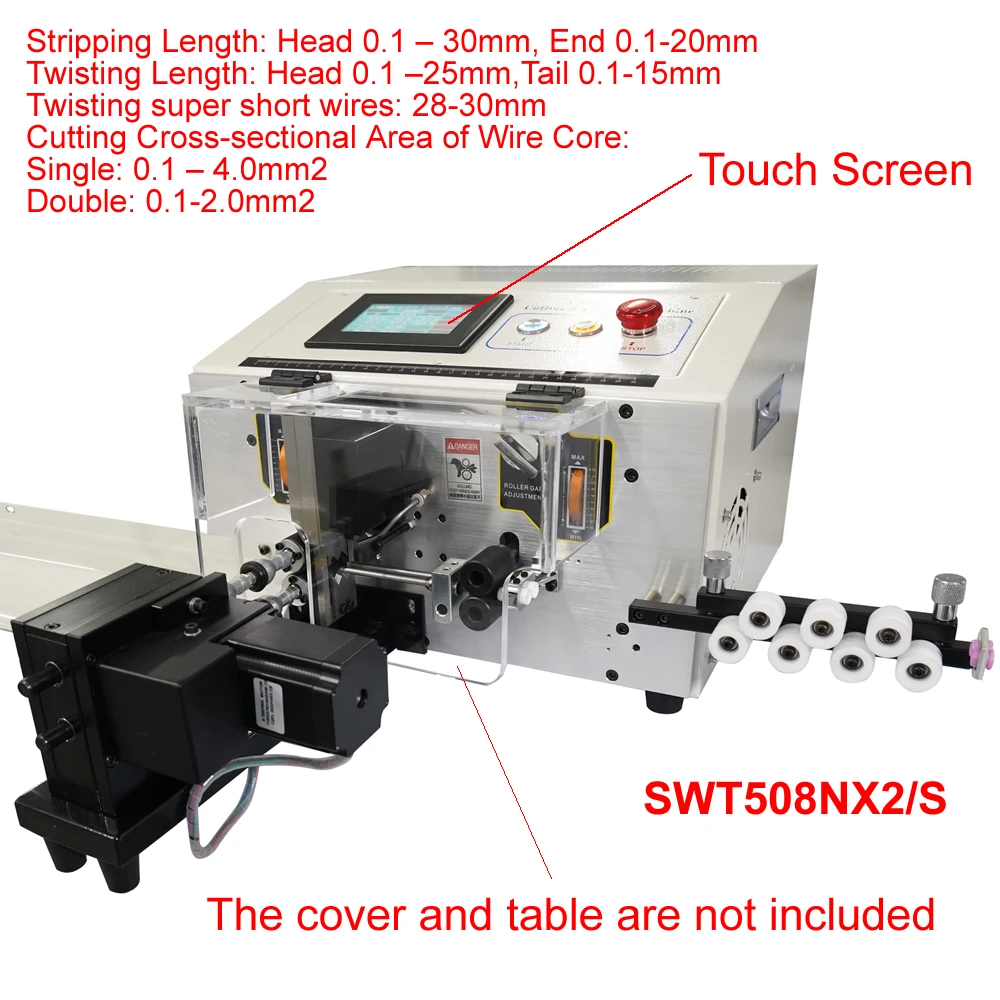

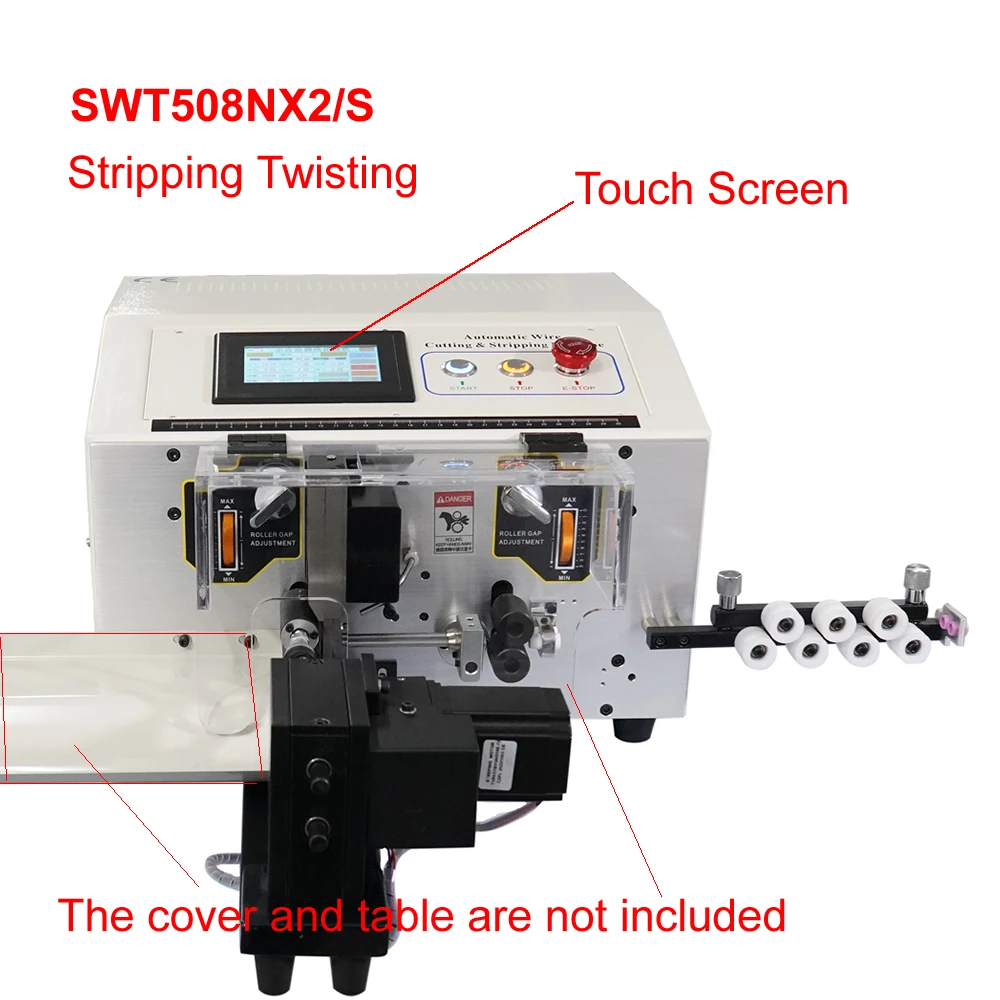

Model: SWT-508NX2/S—Touch Screen

Overall Dimensions: 450mm×420mm×290mm

Power: 350W

Voltage: 220V/110V

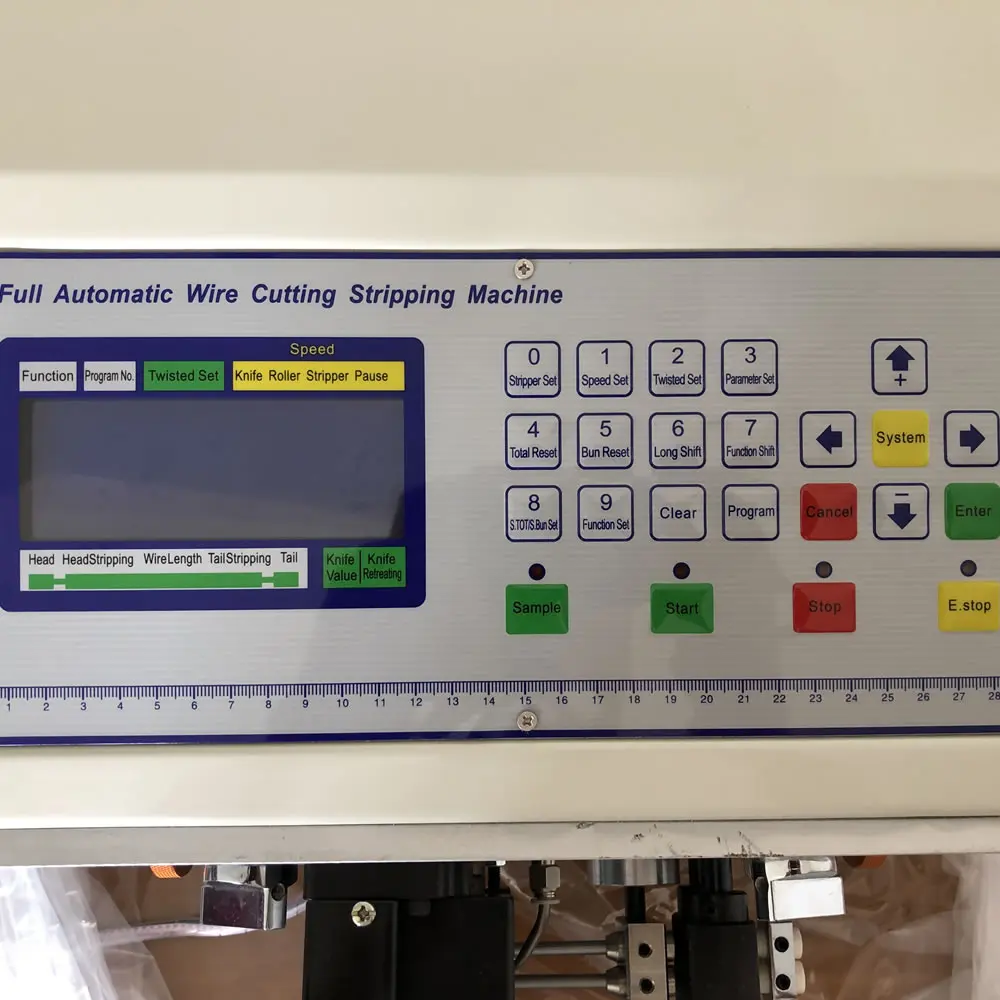

Mode of Display: 4.3 Inch Touch Screen Display Screen in English and Chinese

Cutting Length: 0.1mm – 100000mm

Cutting Tolerance: ≤0.002×L (L = Cutting Length)

Stripping Length: Head 0.1 – 30mm, End 0.1-20mm

Twisting Length: Head 0.1 –25mm,Tail 0.1-15mm

Twisting tremendous quick wires: 28-30mm

Cutting Cross-sectional Area of Wire Core:

Single: 0.1 – 4.0mm2

Double: 0.1-2.0mm2

Maximum Diameter of Conduit Pipe: ¢6

Knife Material: High-quality Tungsten Steel

Stripping Speed: Length 100mm, 3000 – 6000 pcs/h

Mode of Driving: Four-wheeled Drive (Silent hybrid stepping motor, every step 0.1mm ahead)

Adjusting Speed: 0 Slowest, 9 Fastest

SWT-508NX2——Key Control
