Please set up the led strips on the principle cable at first, after the led strips are all put in, then join energy provide!

Please DO NOT set up or take off the led strip when the controller is powered on. This is simple to get the principle cable burnt!

NOTE:

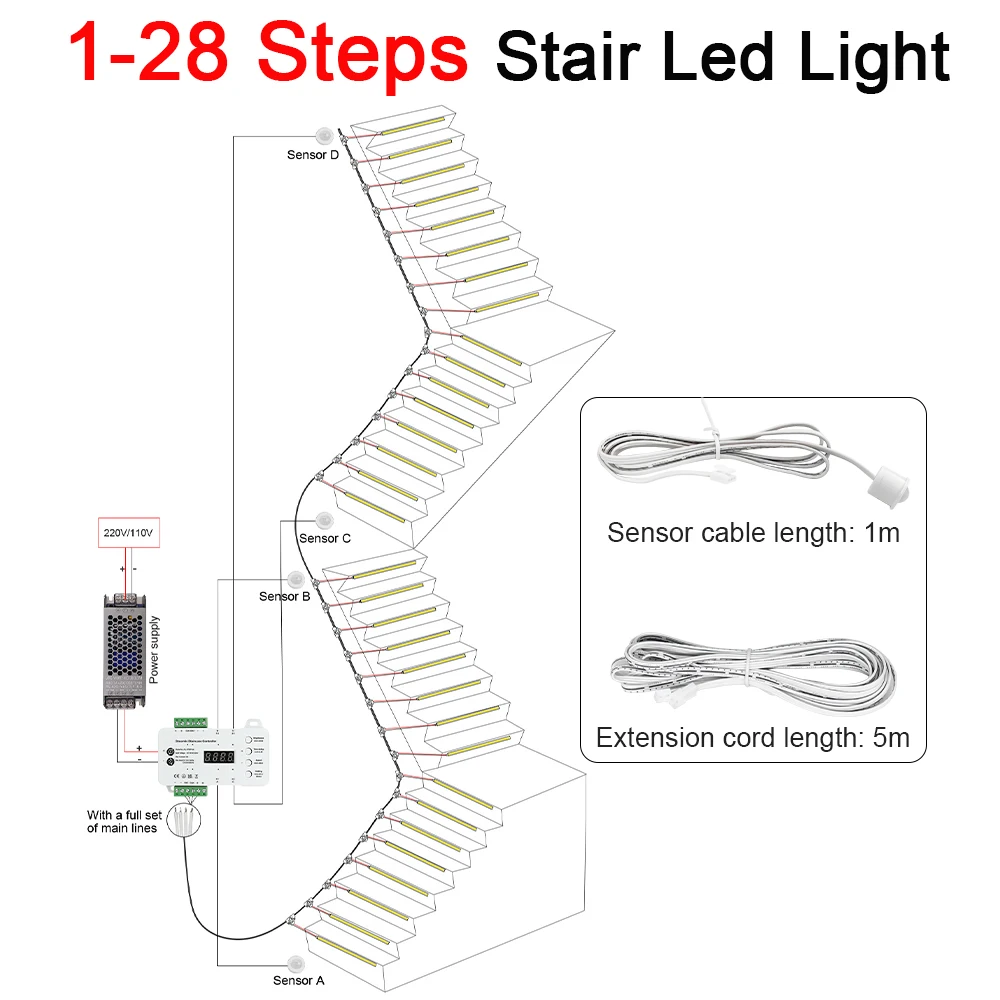

1：A/B sensors have to be put in on the entrance and exit of the stairs and face the human physique.
2：The product is low voltage 12V-24V, want to attach transformer. Do in a roundabout way join 220V, it can burn the controller.
3：The product will not be waterproof.

How To Use
1. Setting

Long press“Setting" to set Step Numbers, Brightness, Time Delay, Speed, Mode

Short press to“Setting" to enter subsequent setting

After completed all setting, lengthy press“Setting”to avoid wasting all setting

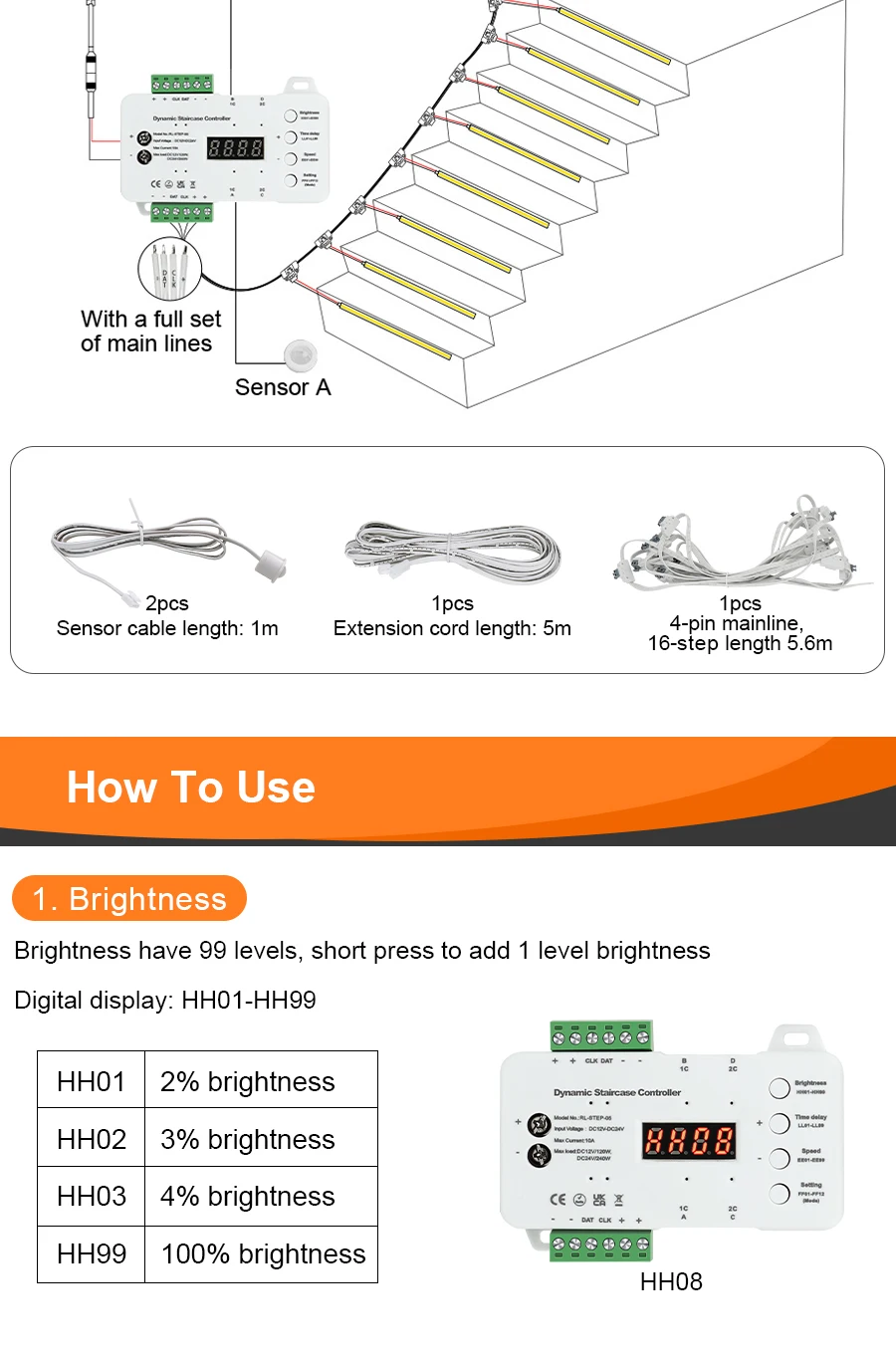

2. Brightness

Brightness have 99 ranges, brief press so as to add 1 stage brightness

Digital show: HH01-HH99

HH01——————2% brightness

HH02——————3% brightness

HH03——————4% brightness

HH99——————100% brightness

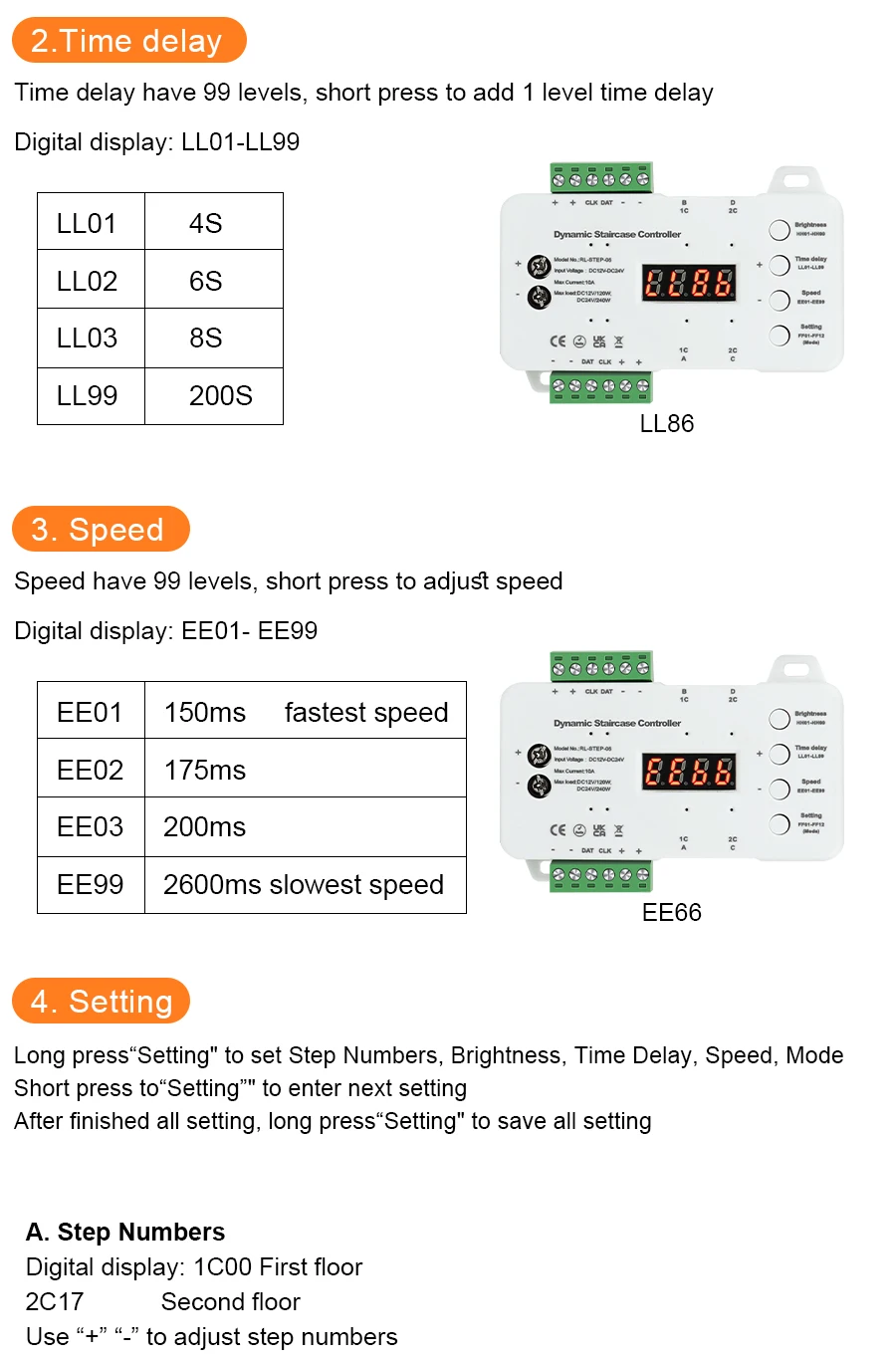

3.Time delay

Time delay have 99 ranges, brief press so as to add 1 stage time delay

Digital show: LL01-LL99

LL01——————4S

LL02——————6S

LLO3——————8S

LL99——————200S

4. Speed

Speed have 99 ranges, brief press to regulate velocity

Digital show: EE01-EE99

EE01——————150ms quickest velocity

EE02——————175ms

EEO3——————200ms

EE99——————2600ms slowest velocity

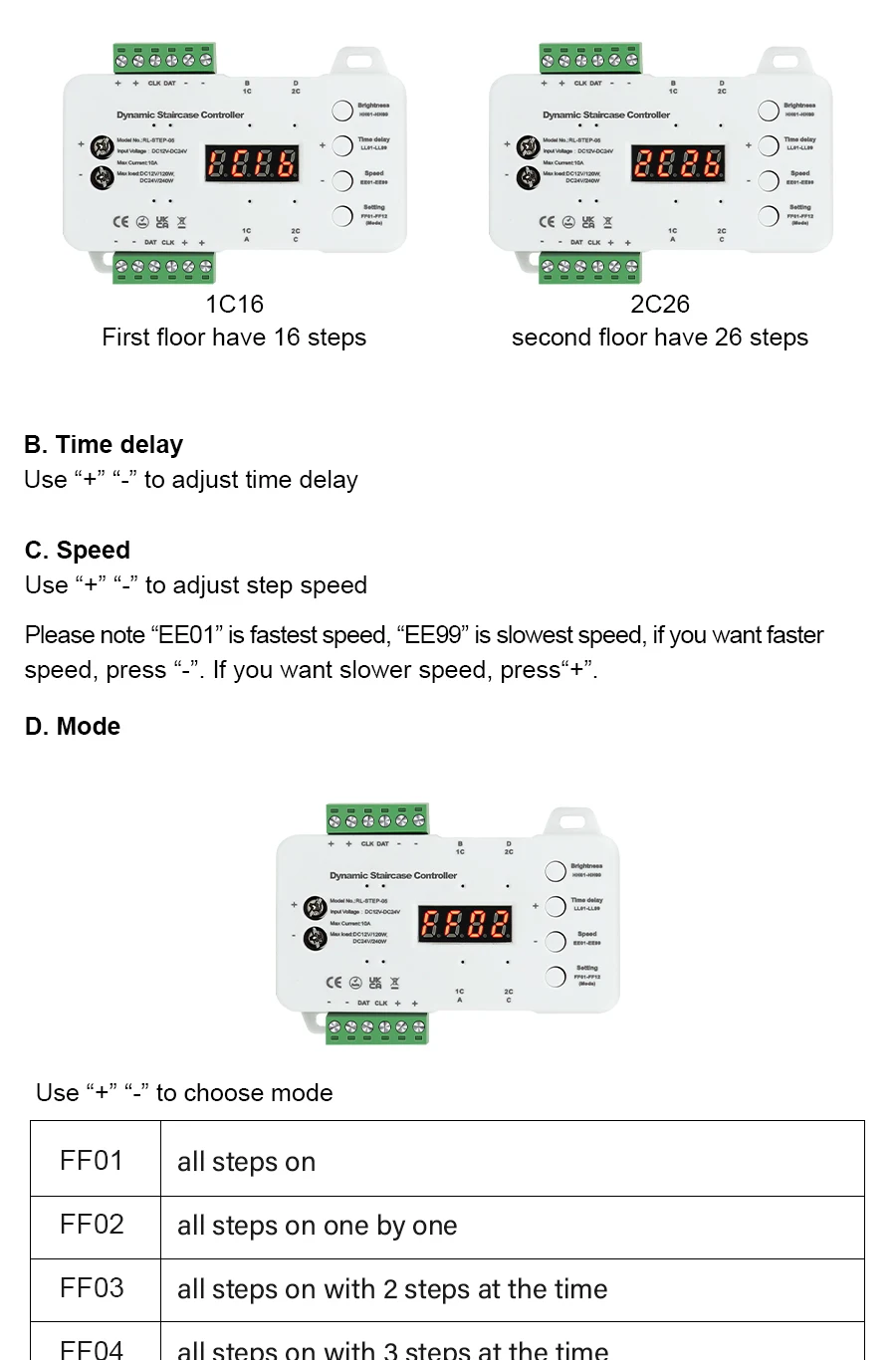

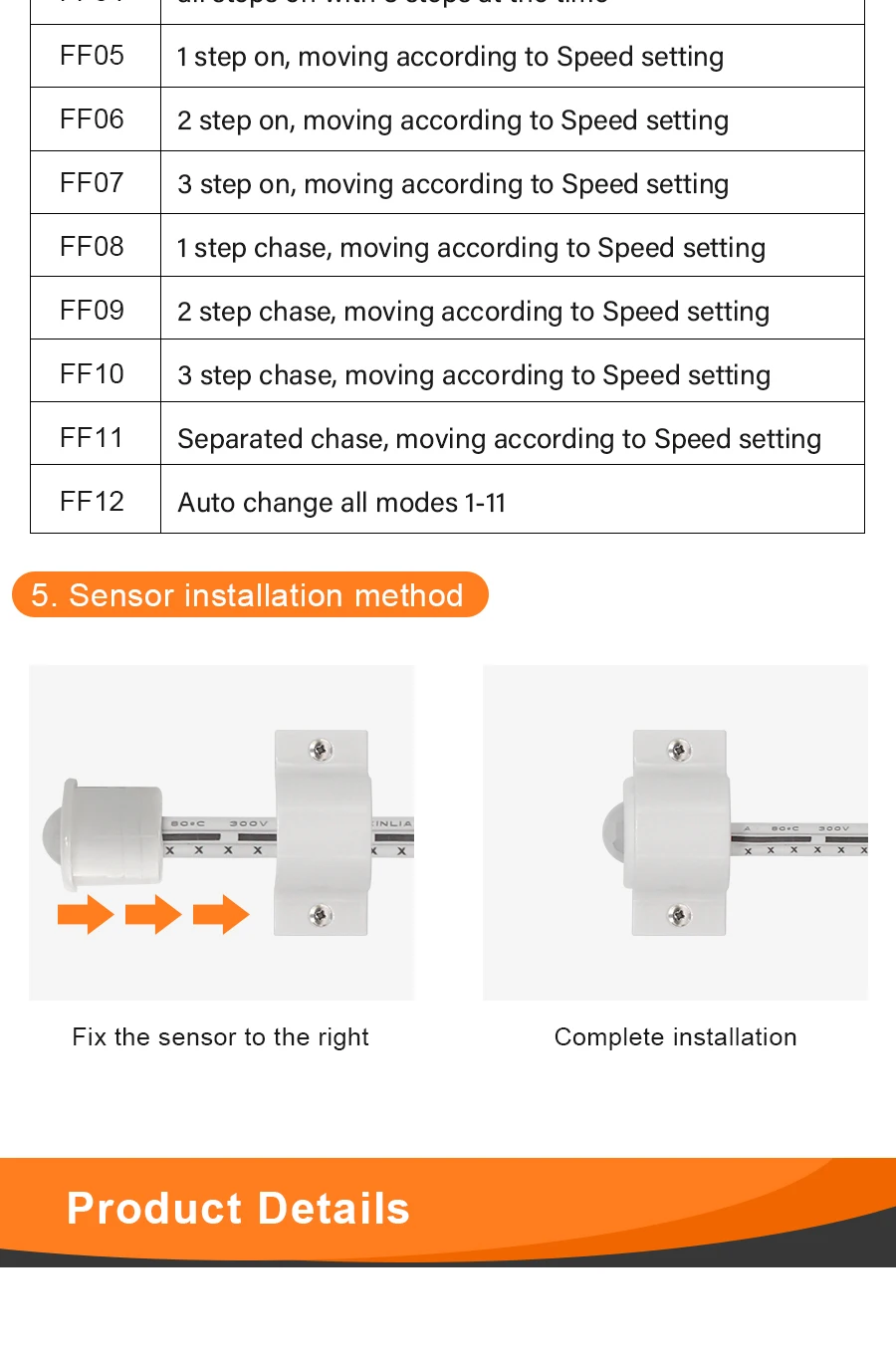

5. Set the working mode of the light strip (12 modes)

FF01——————The first mode

FF05——————The fifth mode

FF010——————The tenth mode

6. Set the variety of stairs

1C01 —————— 1st Floor, 1st ground stairs

1C05 —————— 1st Floor 5 Stairs

1C10 —————— 1st Floor 10 Stairs

2C01 —————— 2nd Floor, 1 Staircase

2C05 —————— 2nd Floor 5 Stairs

2C10 —————— 2nd ground 10 stairs

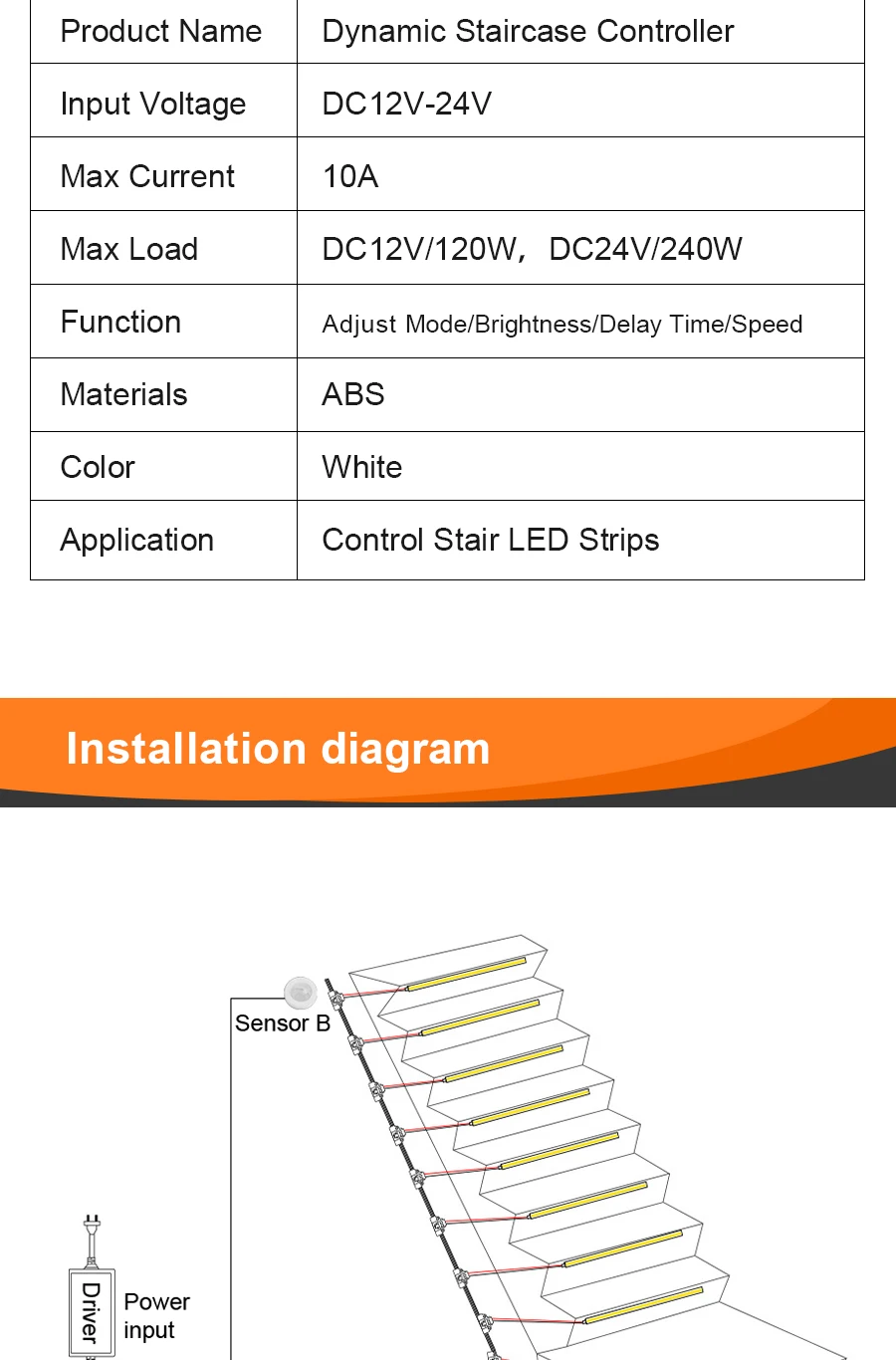

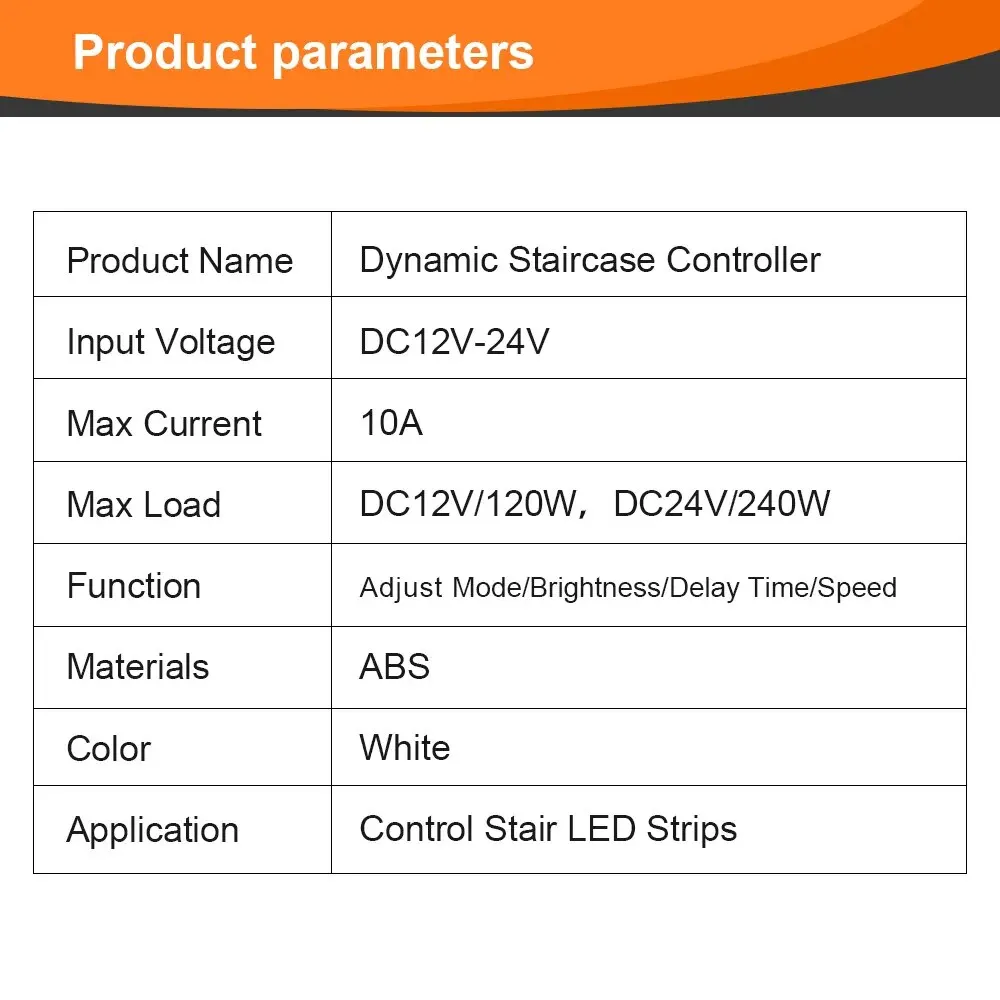

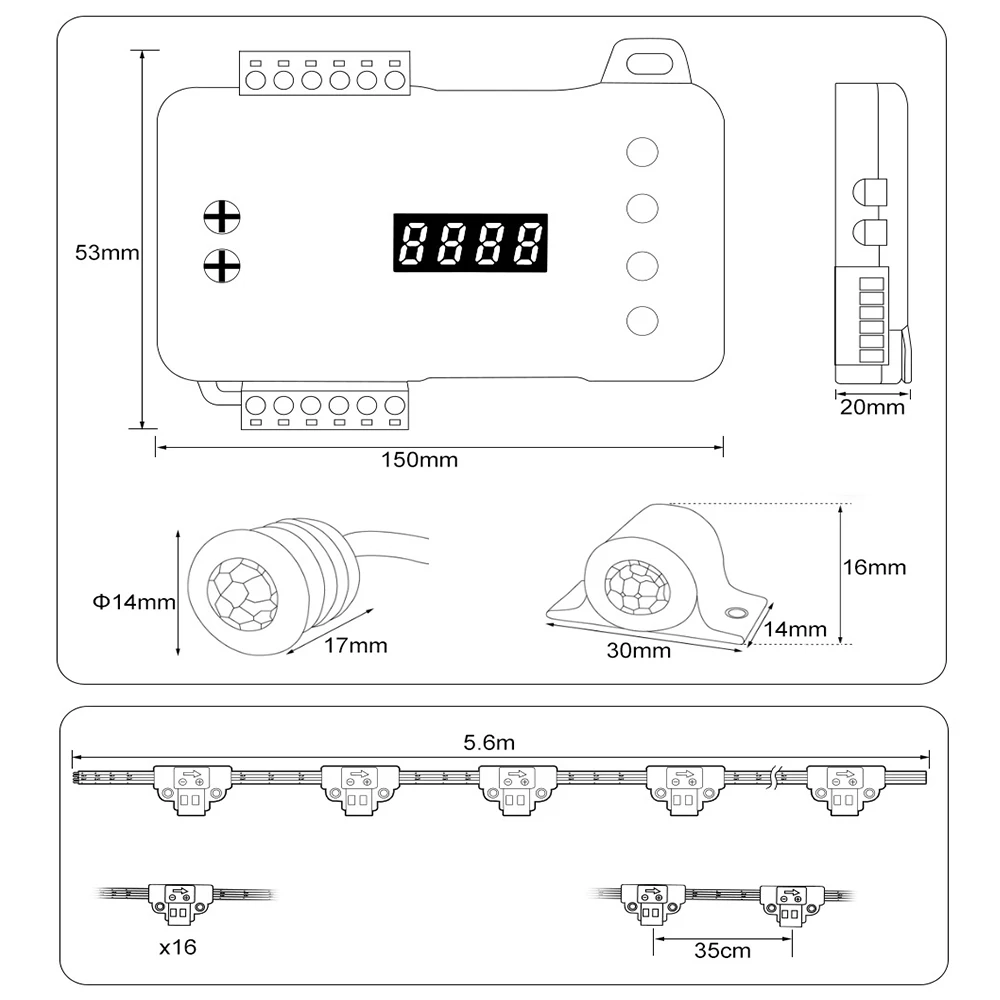

Product parameters:

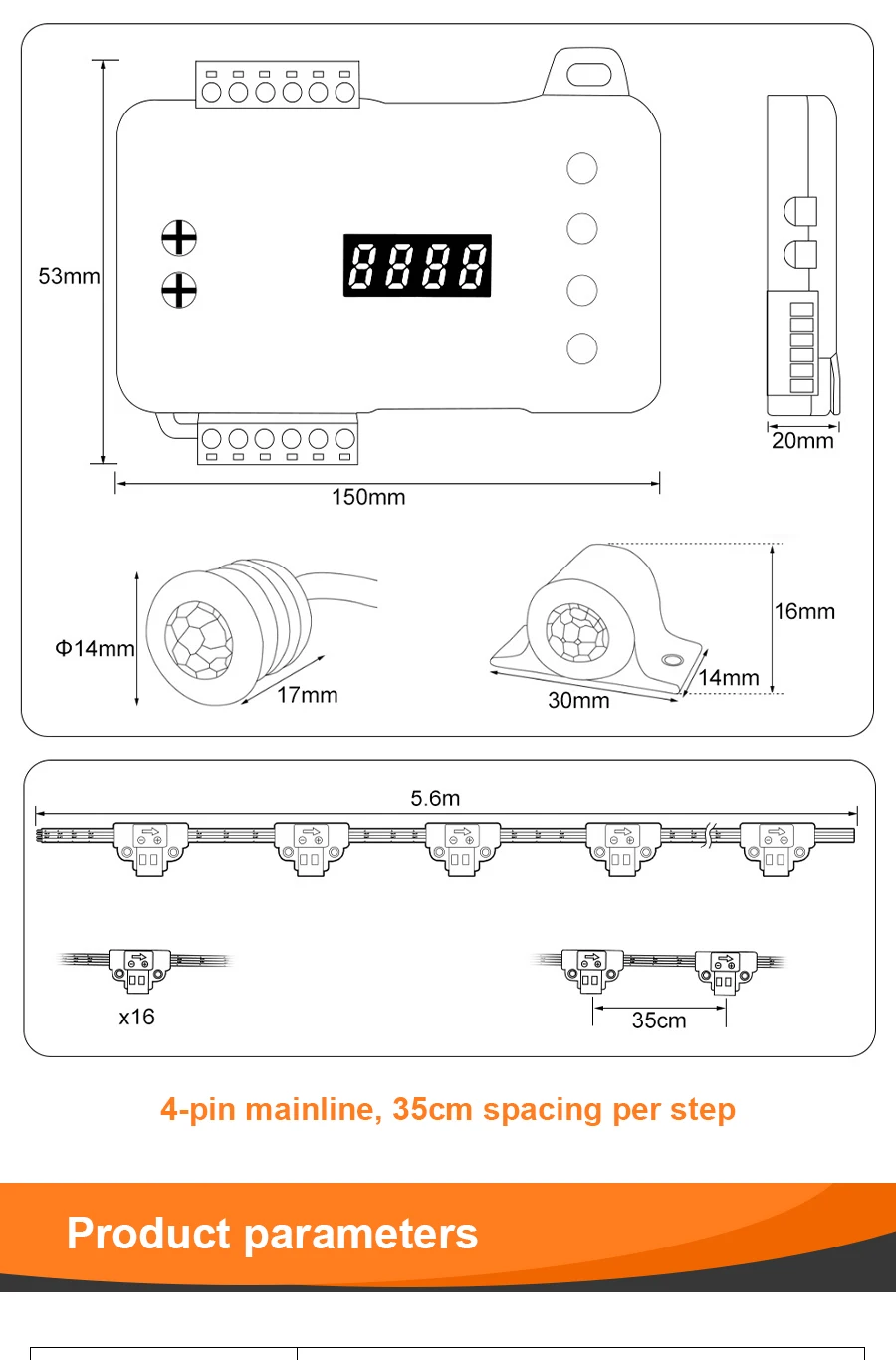

Product identify: Smart Stair Sports LED Light Strip Sensor
Voltage: DC12V-24V
Specifications 1: DC12V/120W
Specifications of two: DC24V/240W
Maximum present: 10A
Control Ladder: 16/20 Ladder
