HLK-LD2410

1. Product introduction

This product is principally utilized in indoor scenes to sense whether or not there’s a shifting or micro-moving human physique within the space, and output the detection leads to actual time. Farthest sensing distance as much as 6 meters, distance decision 0.75m. Provides a visible configuration device, which may simply configure the sensing distance vary and sensing in numerous intervals sensitivity and unmanned delay time, and so on., to adapt to completely different particular software wants.

2. Product Features

• The longest sensing distance is as much as 5 meters

• Accurate identification inside the interval, assist the division of the sensing vary, and protect the interference outdoors the interval

• Visual debugging and configuration instruments

• Supports varied set up strategies reminiscent of ceiling hanging and wall hanging

• 5～12V extensive voltage energy provide

• 3. Benefits



  1. In addition to being delicate to shifting human our bodies, it might probably additionally sensitively sense static, micro-moving, sitting and mendacity human our bodies that can’t be recognized by conventional options;

  3. It has good shell penetration and may be hidden within the shell to work with out opening holes on the floor of the product, which improves the aesthetics of the product;

  4. Hardware Description

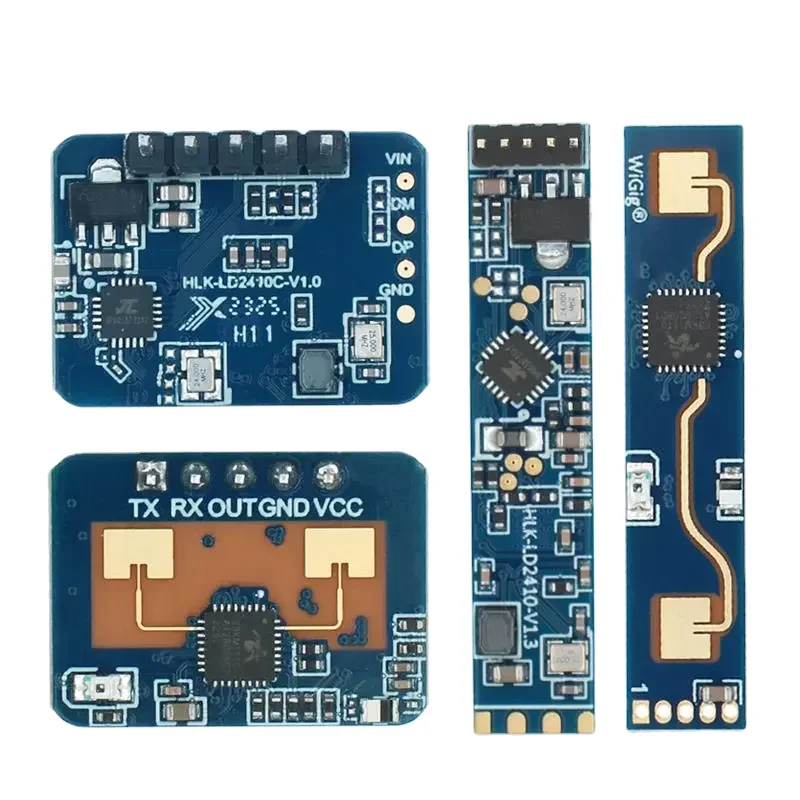

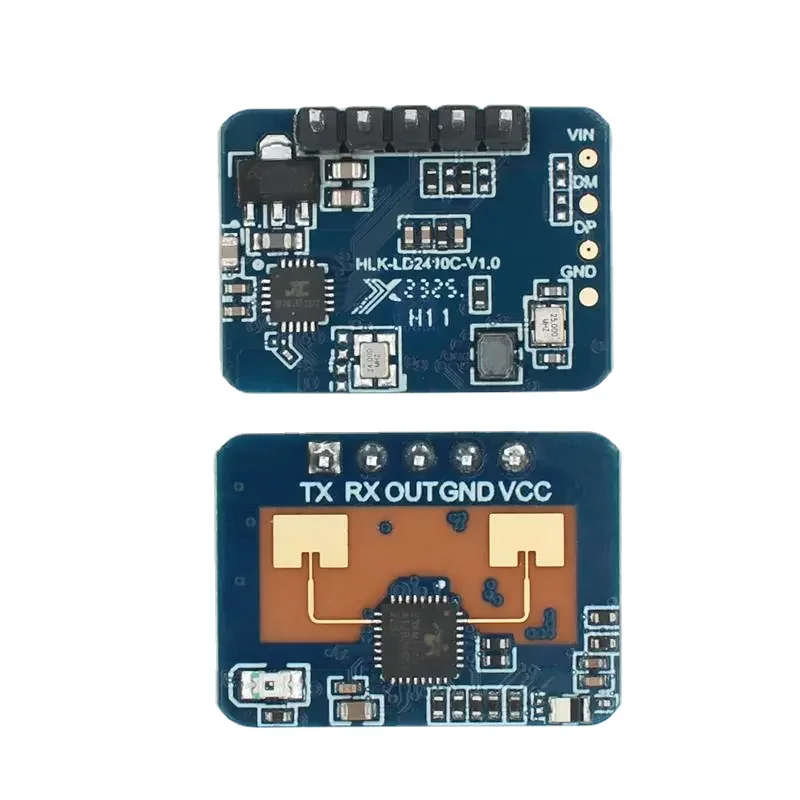

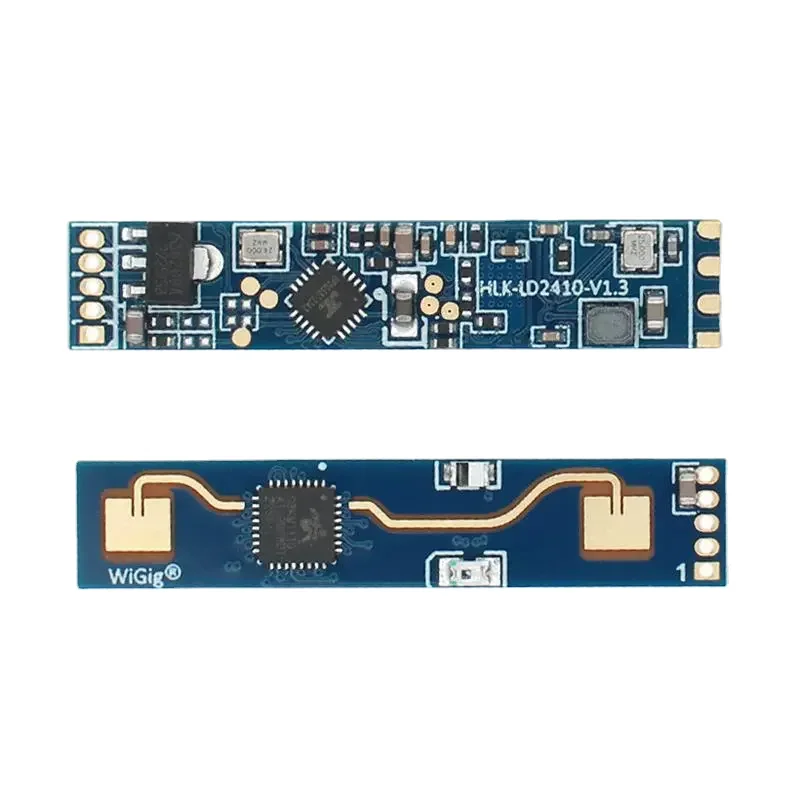

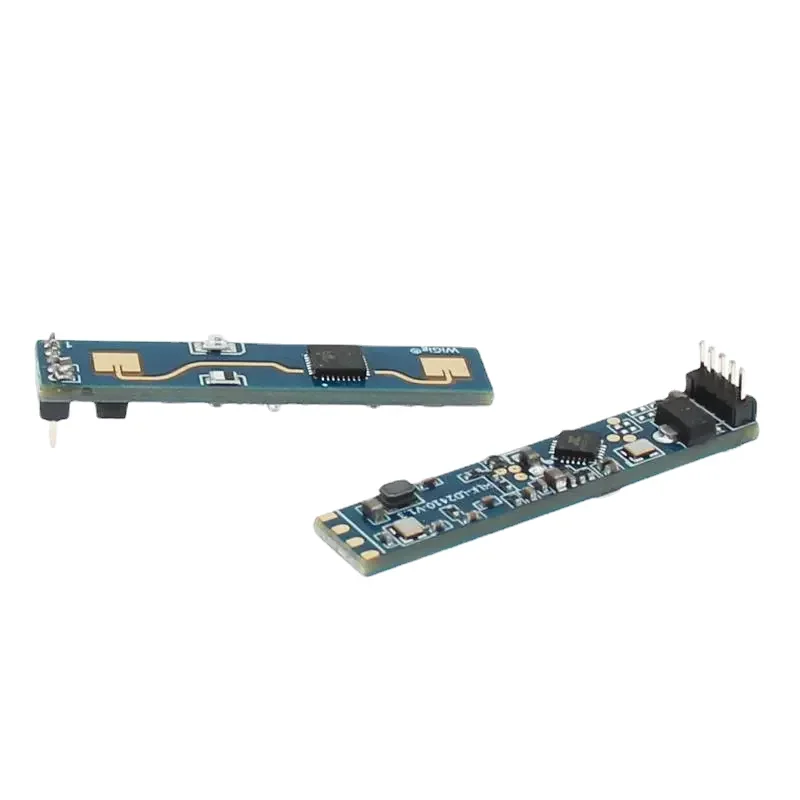

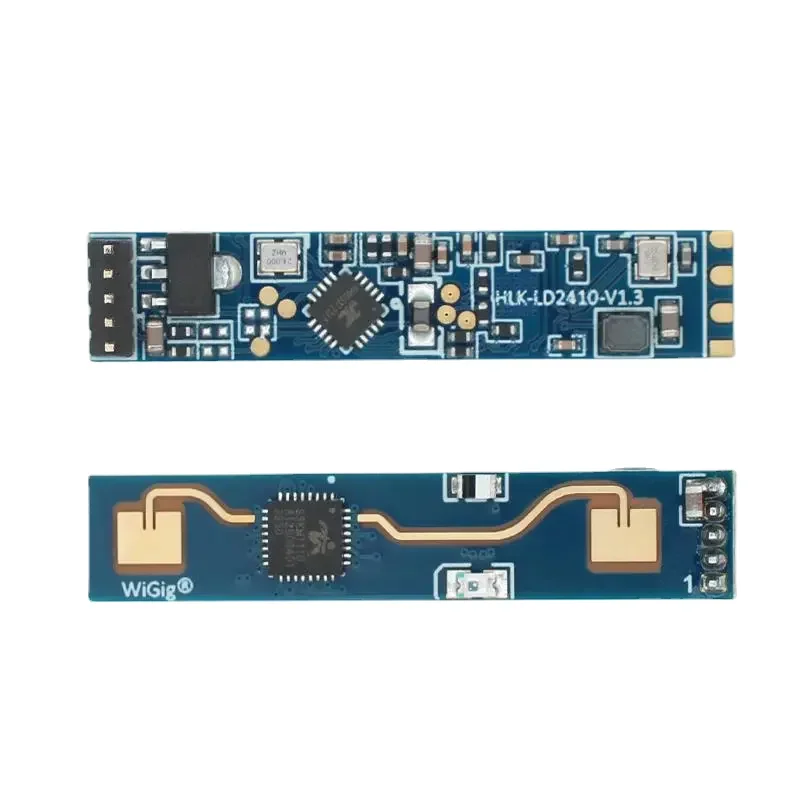

  Module dimension: 7mmx35mm, 5 pin holes are reserved within the {hardware} (the manufacturing unit default doesn’t match the pins)

  HLK-LD2410C





  5. Visual Configuration Tool Description



  How to make use of the host pc device:

  • Select the corresponding serial port quantity within the host pc device, set the baud fee to 256000, choose the engineering mode, and click on to attach the system

  • After connecting, if the beginning button will not be clicked, or click on cease after beginning,the mode parameter data may be learn or set

  The interface and customary features of the host pc device are as follows:



  6. Bluetooth directions (LD2410(BLE) / LD2410C)



  Currently the APP helps Android and IOS platforms, you possibly can obtain it from this hyperlink:  (Android)

  6.2 Instructions



  The use distance of the APP mustn’t exceed the Bluetooth sign vary (inside 4 meters).



  6.3 Turn on bluetooth once more
