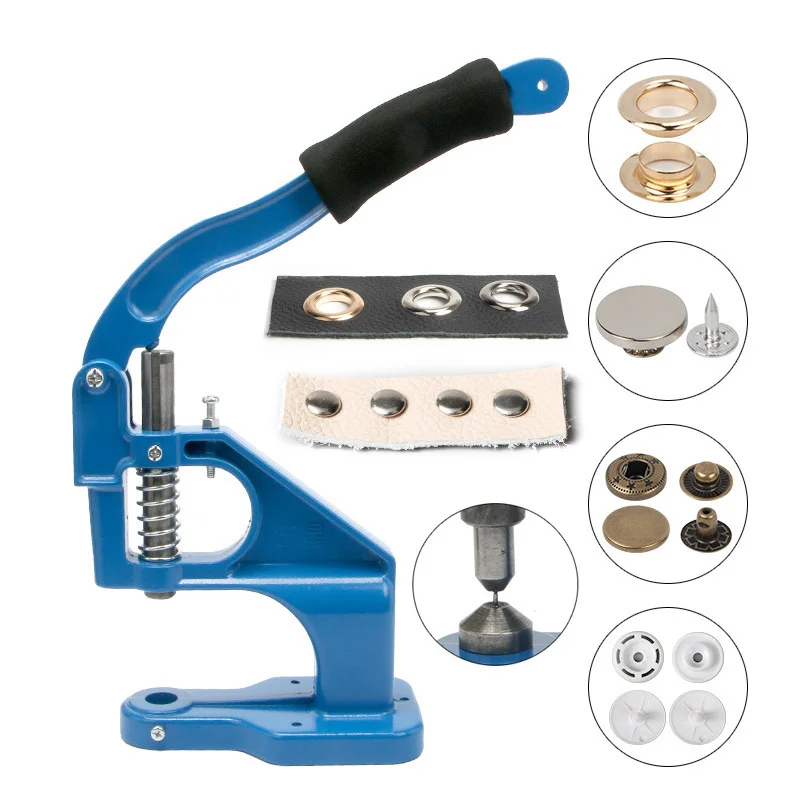

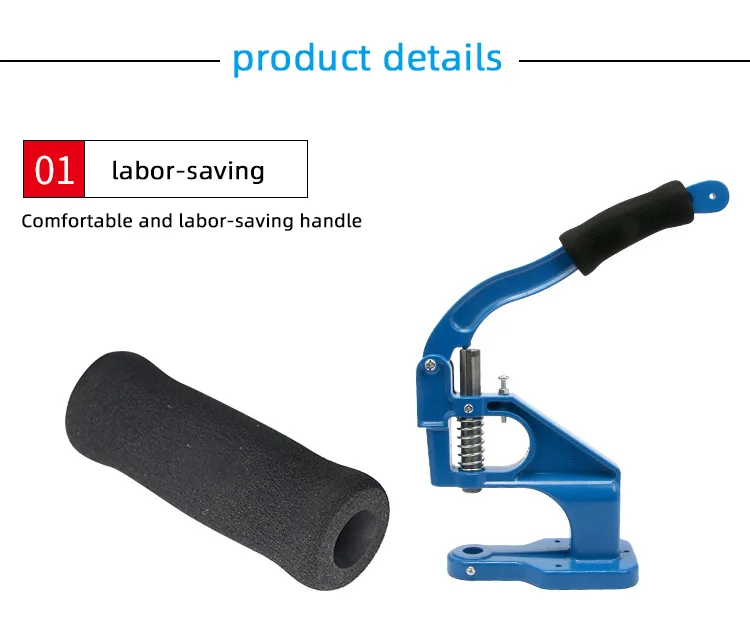

Hand Pressing Machine

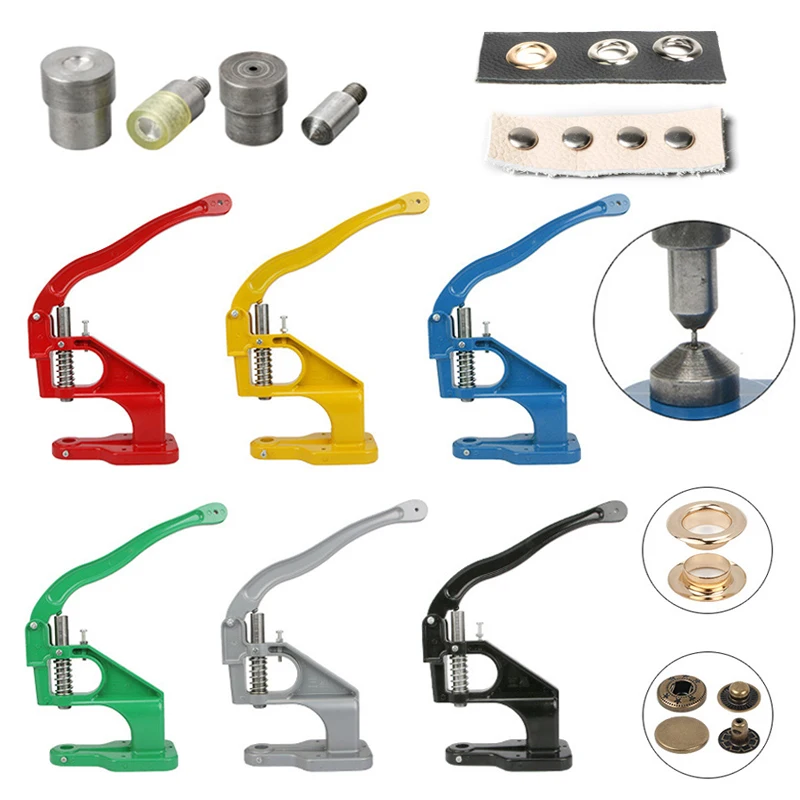

Color: Red / yellow / Blue / Green / Grey / Black
Weight: packed one, about 1.8kg
Material: Aluminum
Features: exact buckle, easy and straightforward to make use of

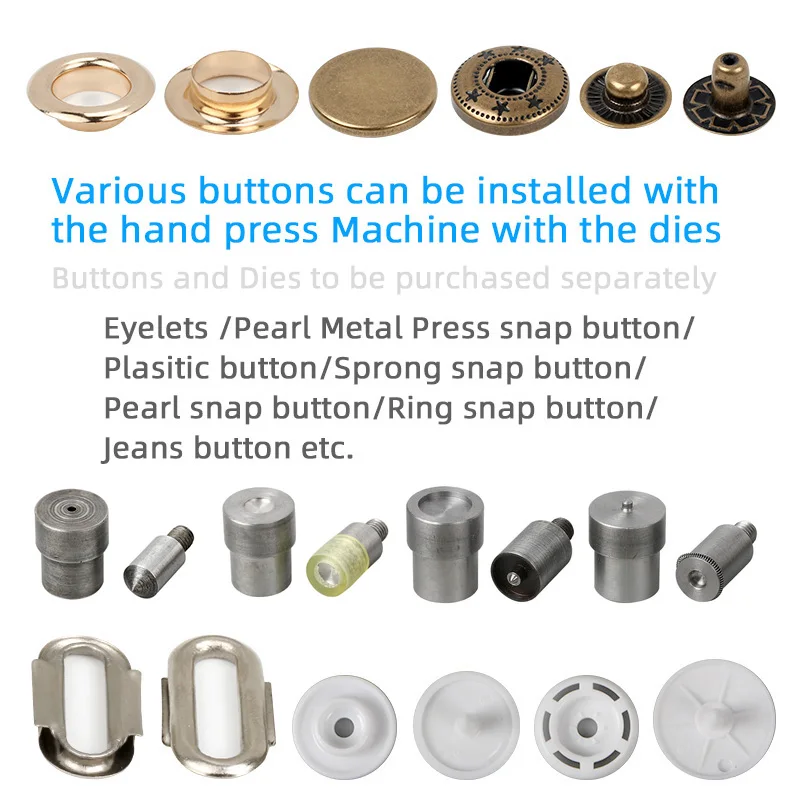

Scope of utility: varied button rivets will be put in
Note: the machine itself doesn’t comprise die

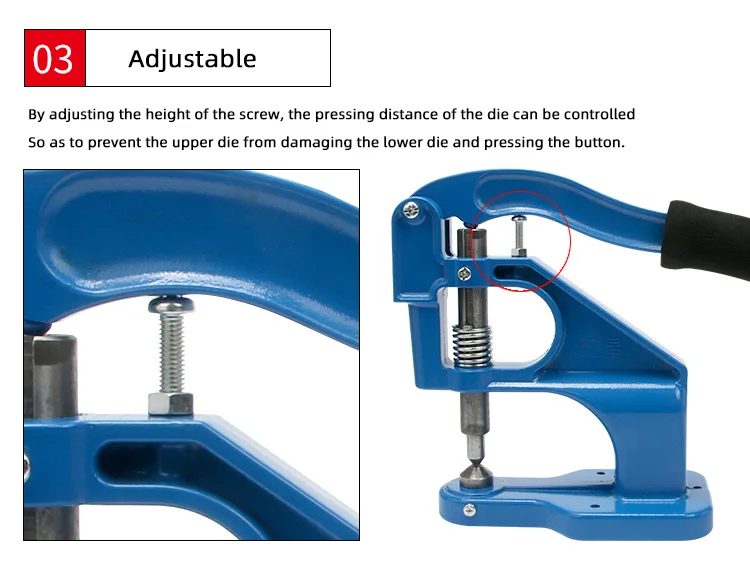

可调节的

通过调整螺杆的高度,可以控制模具的压制距离.
以免上模损坏下模而按下按钮.

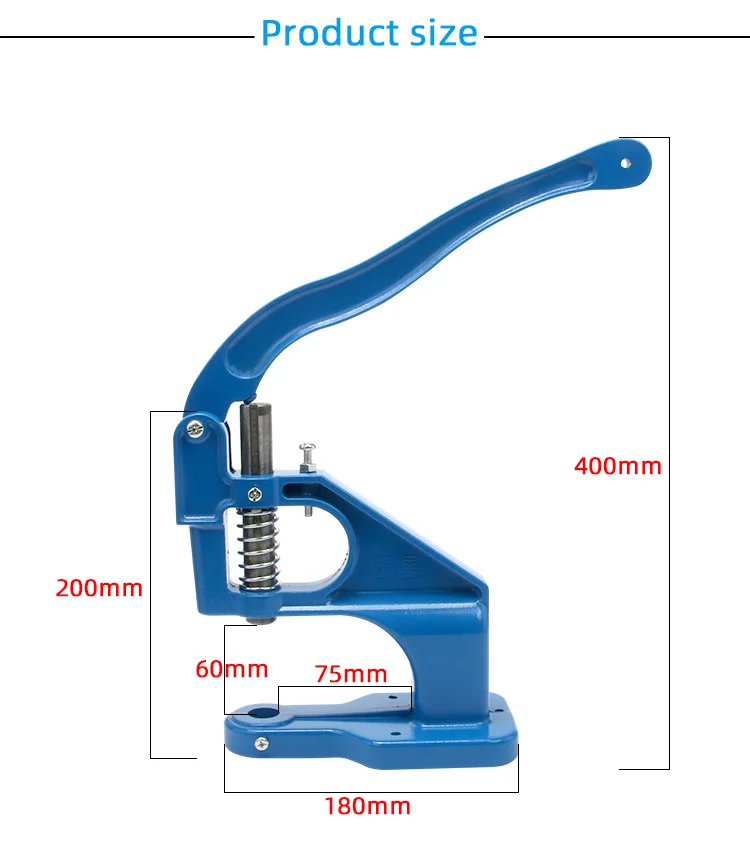

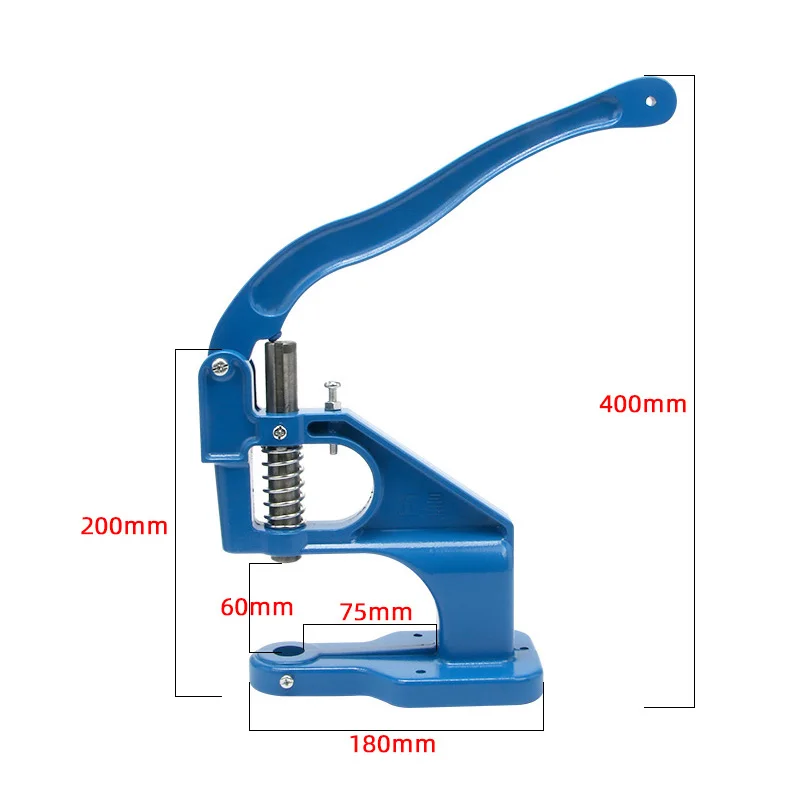

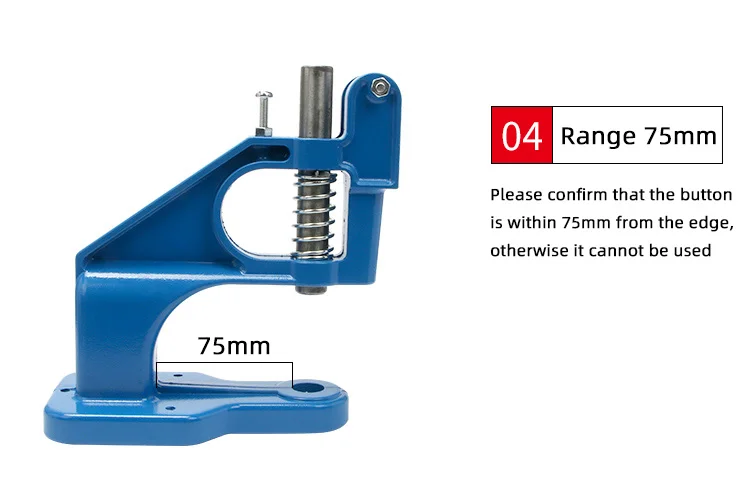

04:Please verify that the button is inside 75mm from the sting, in any other case it can’t be used.

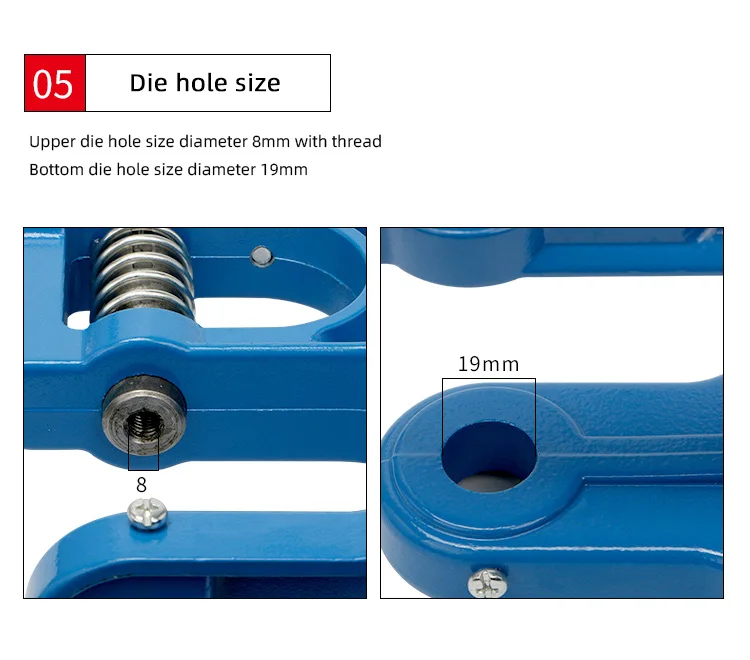

05:Upper die gap measurement diameter 8mm with thread
.
Bottom die gap measurement diameter 19mm.

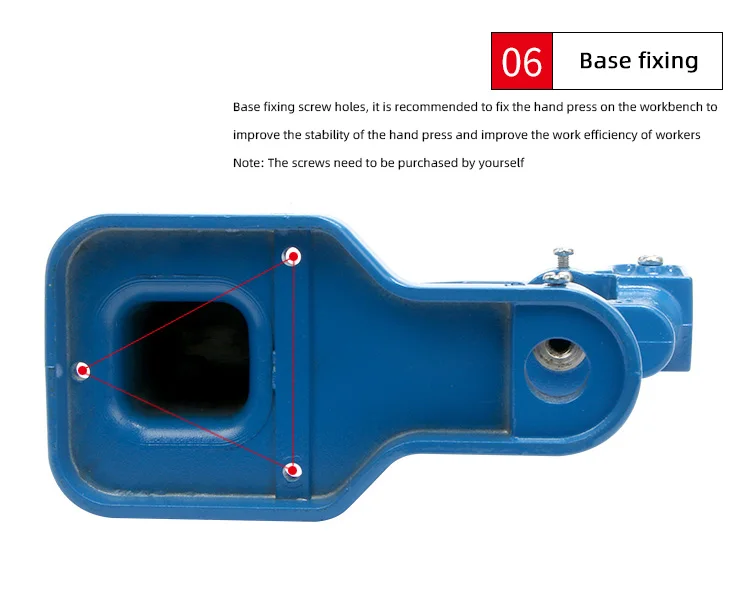

06: Base fixing screw holes, it is suggested to repair the hand press on the workbench to enhance the steadiness of the hand press and enhance the work effectivity of staff
Note: The screws should be bought by your self

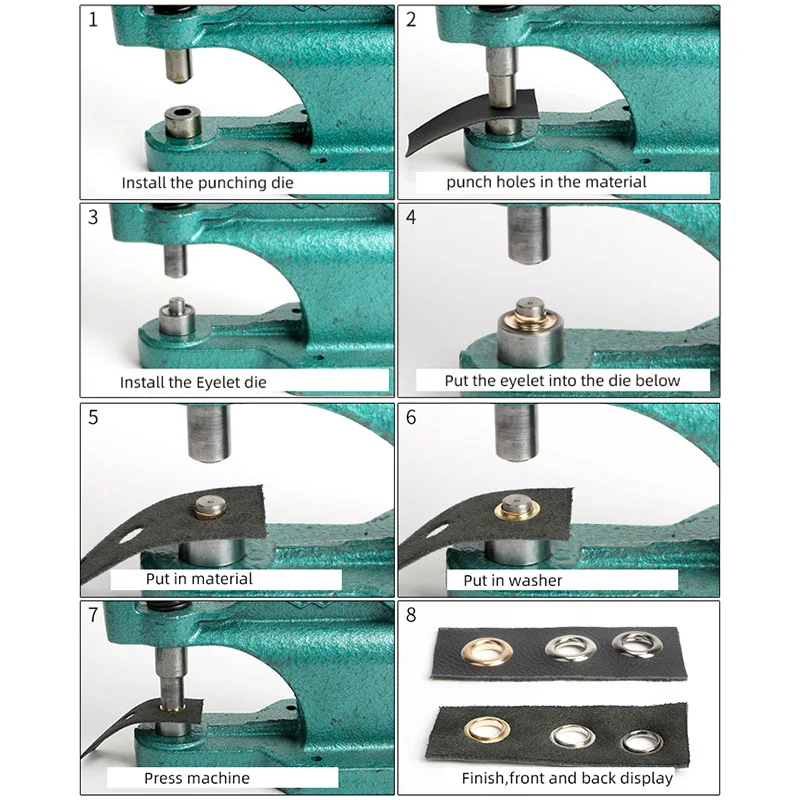

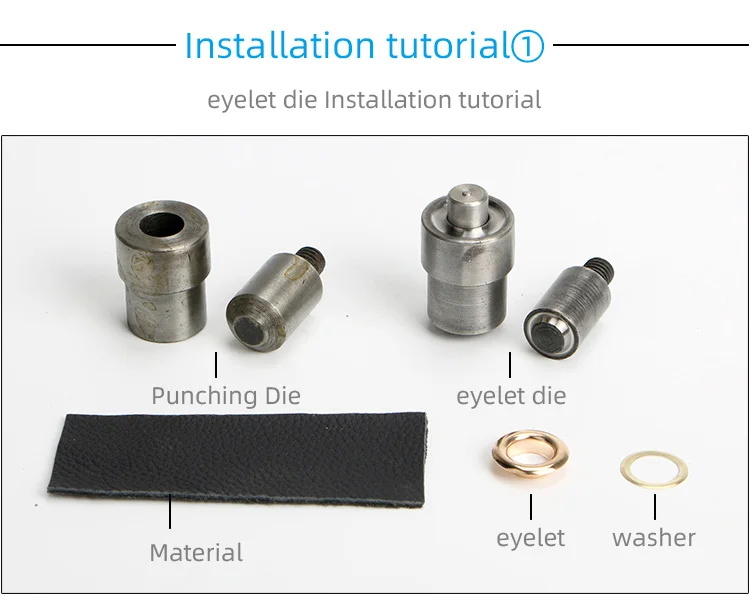

Eyelet dies

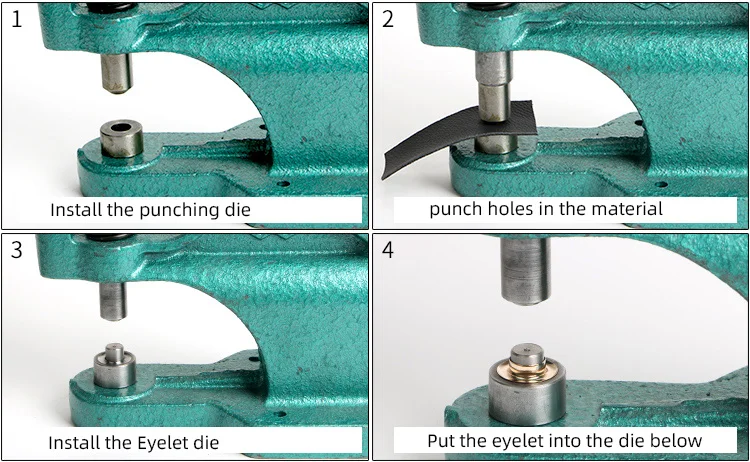

1.Install the punching die
2.Press the machine to punch holes within the materials
3.Install the Eyelet Mould
4.Put the eyelet button into the mould under

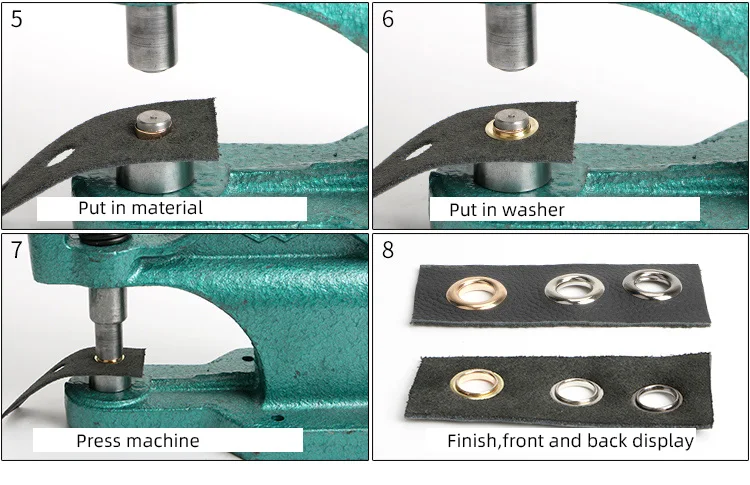

5.Put in materials
6.Put in washer
7.Press machine
8.Finish

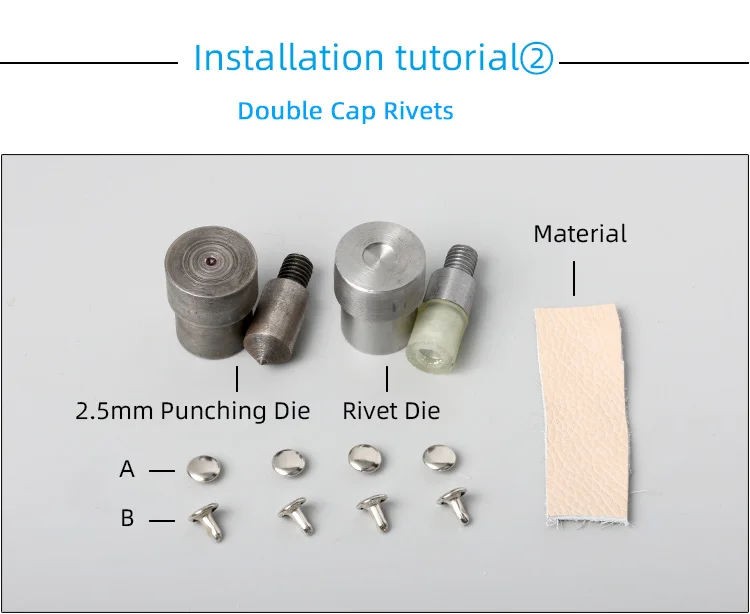

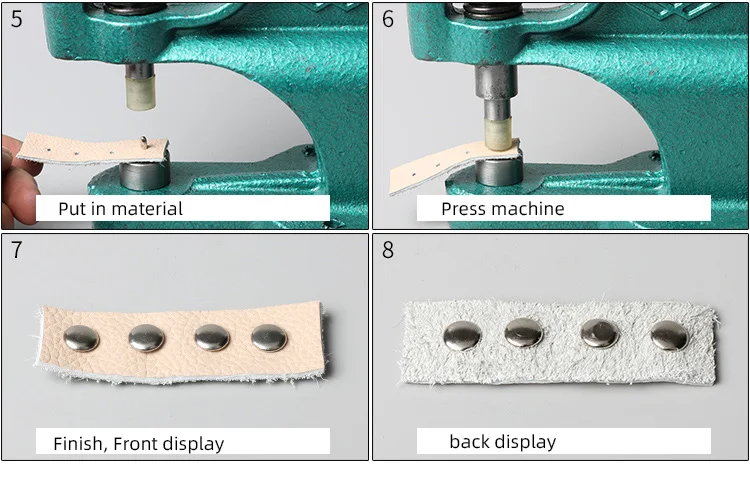

Double Cap Rivets

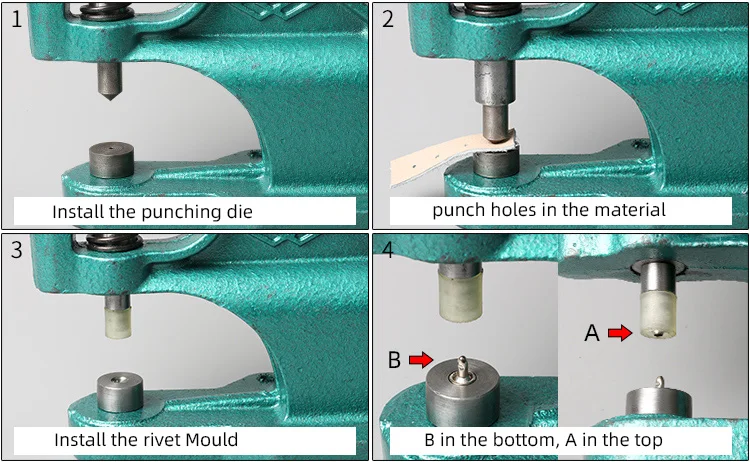

1.安装冲模2.压机
在材料上打孔
3.安装铆钉模具
4.B在底部,A在顶部
5.放入材料
6.压机
7. 8.完成

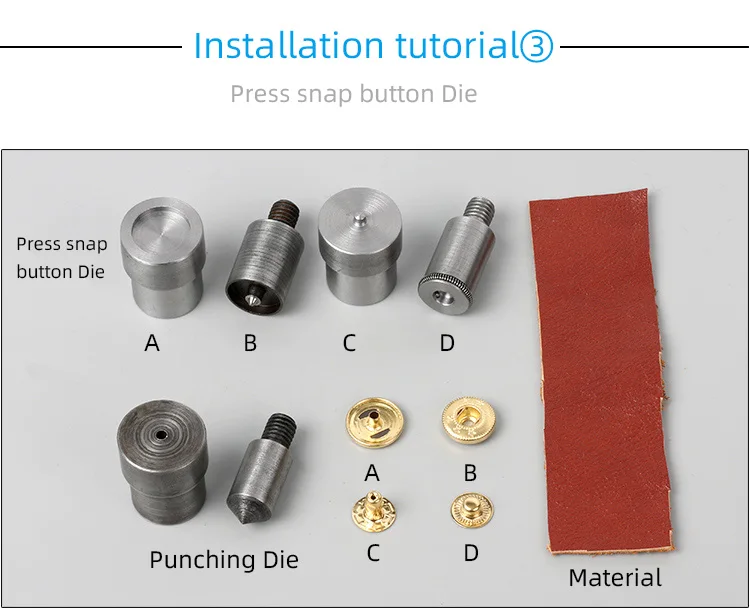

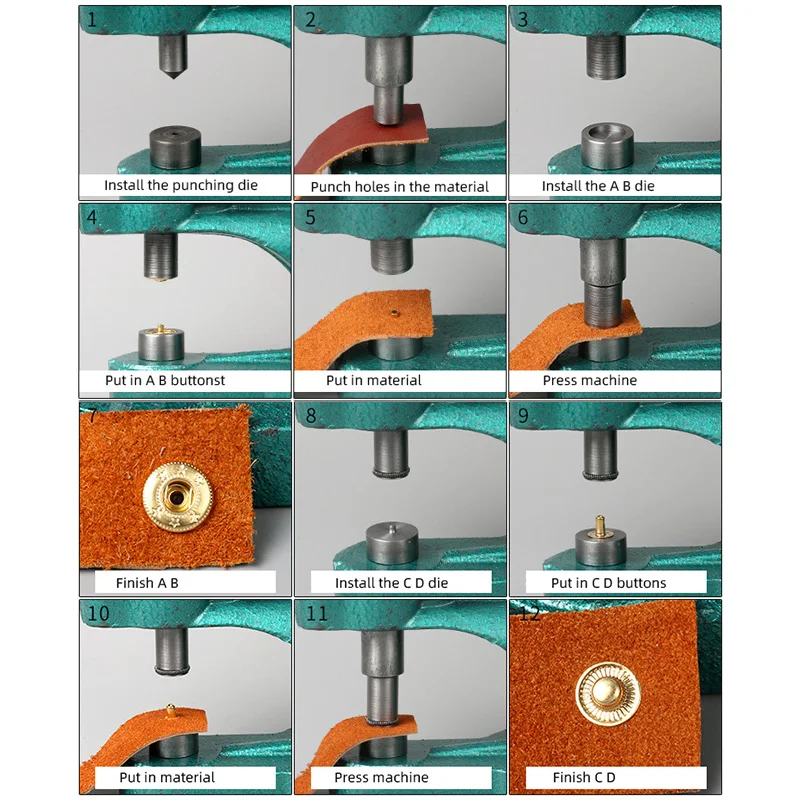

按扣模

1.安装冲模2.压机在
材料上打孔
3.安装AB模4.放
AB扣
5.放材料
6.
压机 7.完成AB
8.安装CD模
9.放入CD按钮
10.放入材料
11.压机
12.完成CD
