JBD Smart BMS 24V 36V 48V 20A 30A 7S 8S 9S 10S 11S 12S 13S 14S Built-in BT UART Li-ion LiFePo4 Bms Balance Board For E-Bike

affiliatedstore

March 23, 2024

JBD Smart BMS 24V 36V 48V 20A 30A 7S 8S 9S 10S 11S 12S 13S 14S Built-in BT UART Li-ion LiFePo4 Bms Balance Board For E-Bike

Price: [price_with_discount]

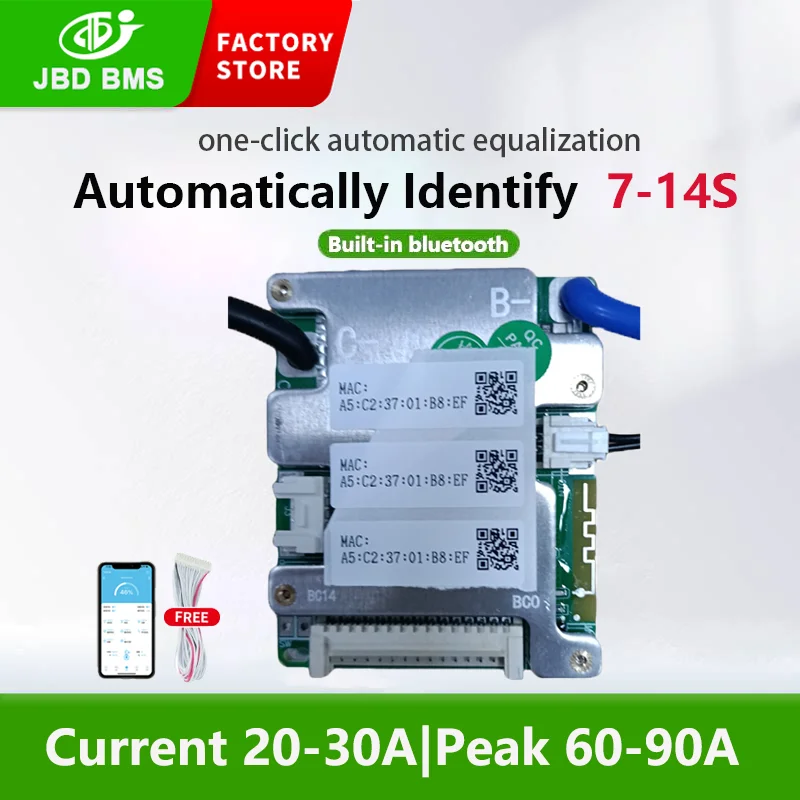

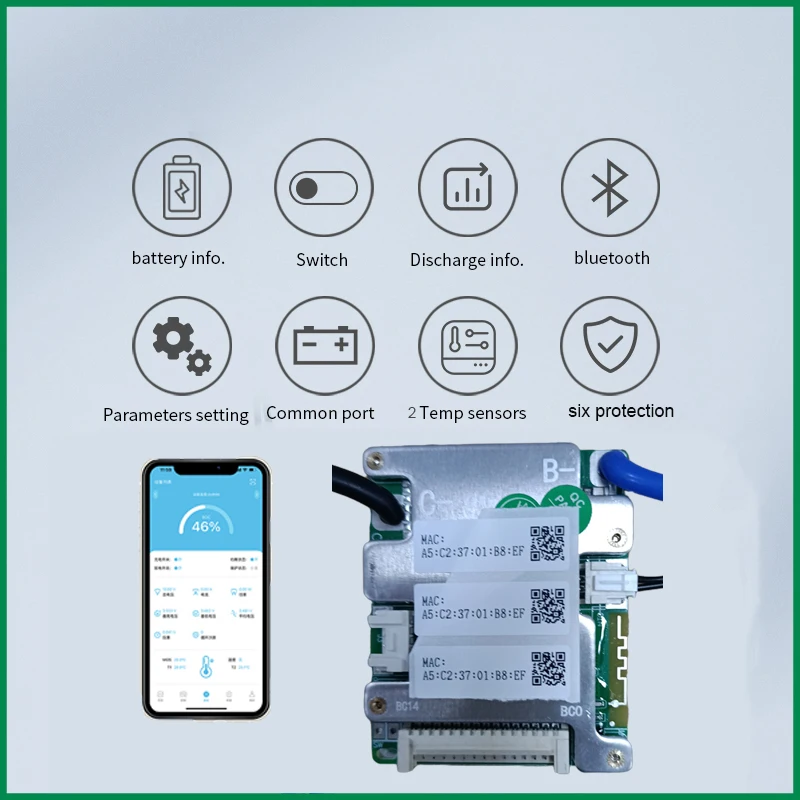

The Smart BMS help mechanically establish 7S 8S 9S 10S 11S 12S 13S 14S li-ion or lifepo4 batteries.

BMS uart port constructed inside bluetooth,with steadiness perform and temp sensor,

help app and PC set and monitor knowledge,help LCD Display monitor parameters.

(please word:good bms accent want purchase individually)

Product Introduction

Applicable Battery Type:3.7v Li-ion/3.2v Lifepo4 Battery.

Support Number Of Strings:mechanically establish 7-14S.

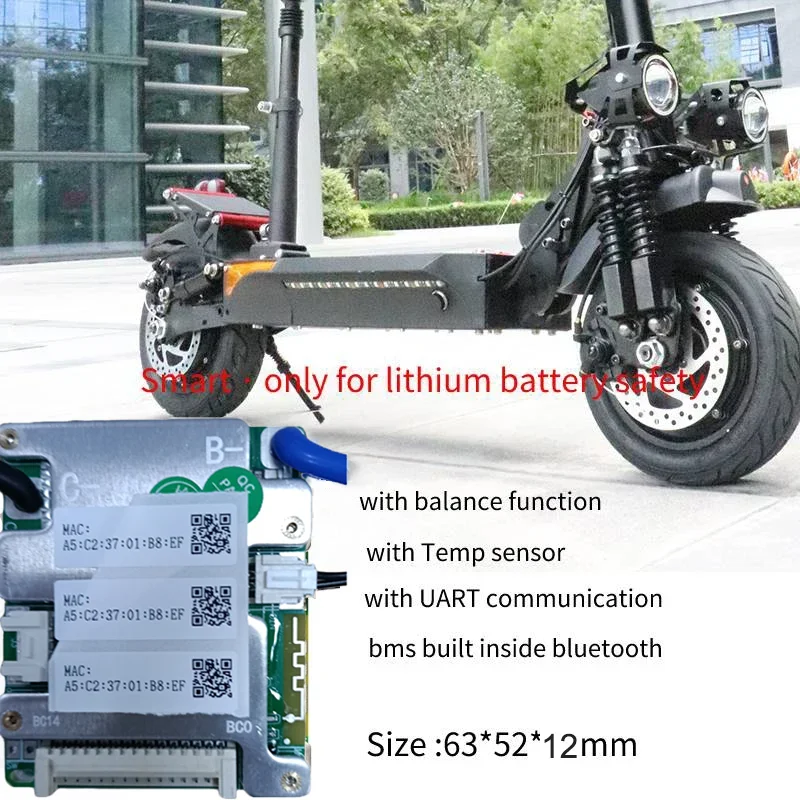

Size:63*52*12mm.

Continuous present 20A,peak present 60A proceed 1s.

Continuous present 30A,peak present 90A proceed 1s.

Balance Model:Static/Charge steadiness.

Balance Current:20-55mA.

Temperature Sensor:1pc Internal,1pc External.

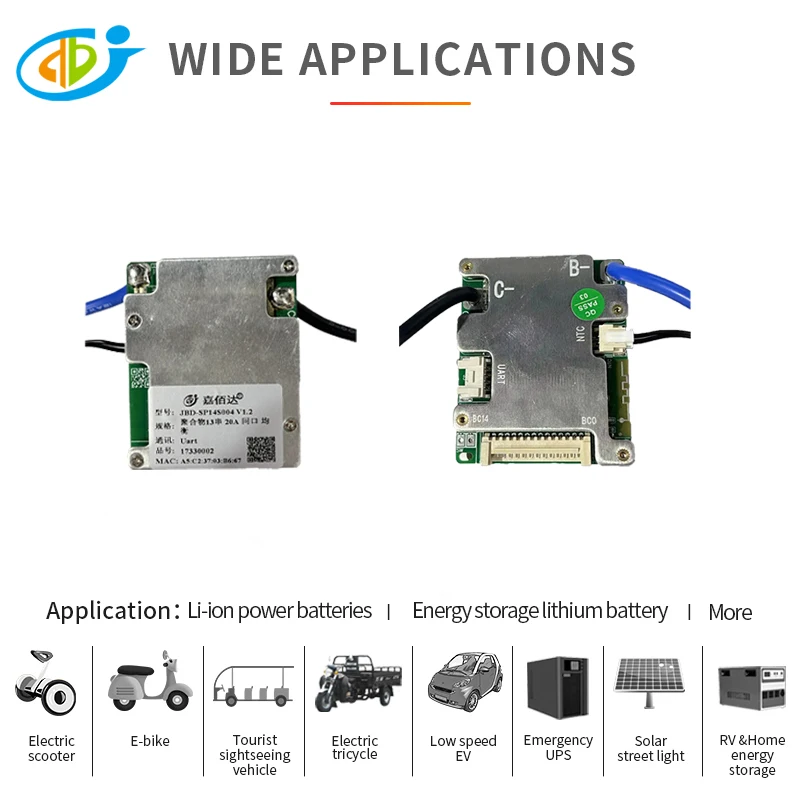

Application For:Electric scooter,Electric scooter,Electric bycicle,Electric Tools,ect.

Package included:BMS with Built-in BT*Balance Wires.

Function Introduction

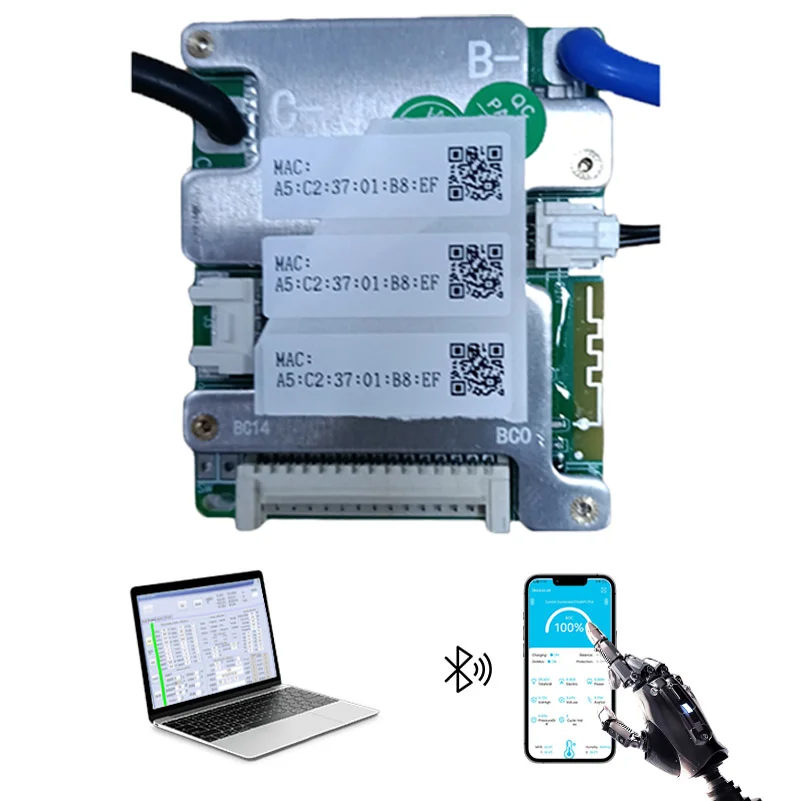

(1)BT-APP in Phone

(xiaoxiangElectric App:http://www.jiabaida.com/appdown/index.html)

Support Both IOS and Android model,can monitor and alter the parameters.

(have to be inside the specified vary).

(2)UART- JBD PC Tool Box-Monitor and Set parameters.

(PC Tool Software: https://jbdtools.oss-cn-beijing.aliyuncs.com/packfile/JBDTools.zip)

(3)UART-LCD Displayer-Can monitor paremeters on LCD displayer.

Attention

(1)All good bms has BT and UART perform

(2)The bms constructed inside bluetooth on the pcb board,needn't purchase further bluetooth individually.

(3)UART good equipment want purchase individually:https://www.aliexpress.com/merchandise/3256804529002284.html

(4)All UART communication could be transformed to Canbus communication if wanted,

solely want to purchase an UART To Canbus converter module individually.

(5)APP handbook/bms specification-pls contact customer support.

7S wiring connection means:

BC0: connect with complete battery adverse

BC1: connect with 1th battery optimistic

BC2: connect with 2th battery optimistic

BC3: connect with 3th battery optimistic

BC4: connect with 4th battery optimistic

BC5: connect with fifth battery optimistic

BC6: connect with sixth battery optimistic

BC7-BC14: join collectively to seventh battery optimistic

8S wiring connection means:

BC0:connect with complete battery adverse

BC1:connect with 1th battery optimistic

BC2:connect with 2th battery optimistic

BC3:connect with 3th battery optimistic

BC4:connect with 4th battery optimistic

BC5:connect with fifth battery optimistic

BC6:connect with sixth battery optimistic

BC7:connect with seventh battery optimistic

BC8-BC14:join collectively to eighth battery optimistic

9S wiring connection means:

BC0:connect with complete battery adverse

BC1:connect with 1th battery optimistic

BC2:connect with 2th battery optimistic

BC3:connect with 3th battery optimistic

BC4:connect with 4th battery optimistic

BC5:connect with fifth battery optimistic

BC6:connect with sixth battery optimistic

BC7:connect with seventh battery optimistic

BC8:connect with eighth battery optimistic

BC9-BC14:join collectively to ninth battery optimistic

10S wiring connection means:

BC0:connect with complete battery adverse

BC1:connect with 1th battery optimistic

BC2:connect with 2th battery optimistic

BC3:connect with 3th battery optimistic

BC4:connect with 4th battery optimistic

BC5:connect with fifth battery optimistic

BC6:connect with sixth battery optimistic

BC7:connect with seventh battery optimistic

BC8:connect with eighth battery optimistic

BC9:connect with ninth battery optimistic

BC10-BC14:join collectively to tenth battery optimistic

11S wiring connection means:

BC0:connect with complete battery adverse

BC1:connect with 1th battery optimistic

BC2:connect with 2th battery optimistic

BC3:connect with 3th battery optimistic

BC4:connect with 4th battery optimistic

BC5:connect with fifth battery optimistic

BC6:connect with sixth battery optimistic

BC7:connect with seventh battery optimistic

BC8:connect with eighth battery optimistic

BC9:connect with ninth battery optimistic

BC10:connect with tenth battery optimistic

BC11-BC14:connect with eleventh battery optimistic

12S wiring connection means:

BC0:connect with complete battery adverse

BC1:connect with 1th battery optimistic

BC2:connect with 2th battery optimistic

BC3:connect with 3th battery optimistic

BC4:connect with 4th battery optimistic

BC5:connect with fifth battery optimistic

BC6:connect with sixth battery optimistic

BC7:connect with seventh battery optimistic

BC8:connect with eighth battery optimistic

BC9:connect with ninth battery optimistic

BC10:connect with tenth battery optimistic

BC11:connect with eleventh battery optimistic

BC12-BC14:connect with twelfth battery optimistic

13S wiring connection means:

BC0:connect with complete battery adverse

BC1:connect with 1th battery optimistic

BC2:connect with 2th battery optimistic

BC3:connect with 3th battery optimistic

BC4:connect with 4th battery optimistic

BC5:connect with fifth battery optimistic

BC6:connect with sixth battery optimistic

BC7:connect with seventh battery optimistic

BC8:connect with eighth battery optimistic

BC9:connect with ninth battery optimistic

BC10:connect with tenth battery optimistic

BC11:connect with eleventh battery optimistic

BC12:connect with twelfth battery optimistic

BC13-BC14: join collectively to thirteenth battery optimistic

14S wiring connection means:

BC0: connect with complete battery adverse

BC1: connect with 1th battery optimistic

BC2: connect with 2th battery optimistic

BC3: connect with 3th battery optimistic

BC4: connect with 4th battery optimistic

BC5: connect with fifth battery optimistic

BC6: connect with sixth battery optimistic

BC7: connect with seventh battery optimistic

BC8: connect with eighth battery optimistic

BC9: connect with ninth battery optimistic

BC10: connect with tenth battery optimistic

BC11: connect with eleventh battery optimistic

BC12: connect with twelfth battery optimistic

BC13: connect with thirteenth battery optimistic

BC14: connect with 14th battery optimistic
