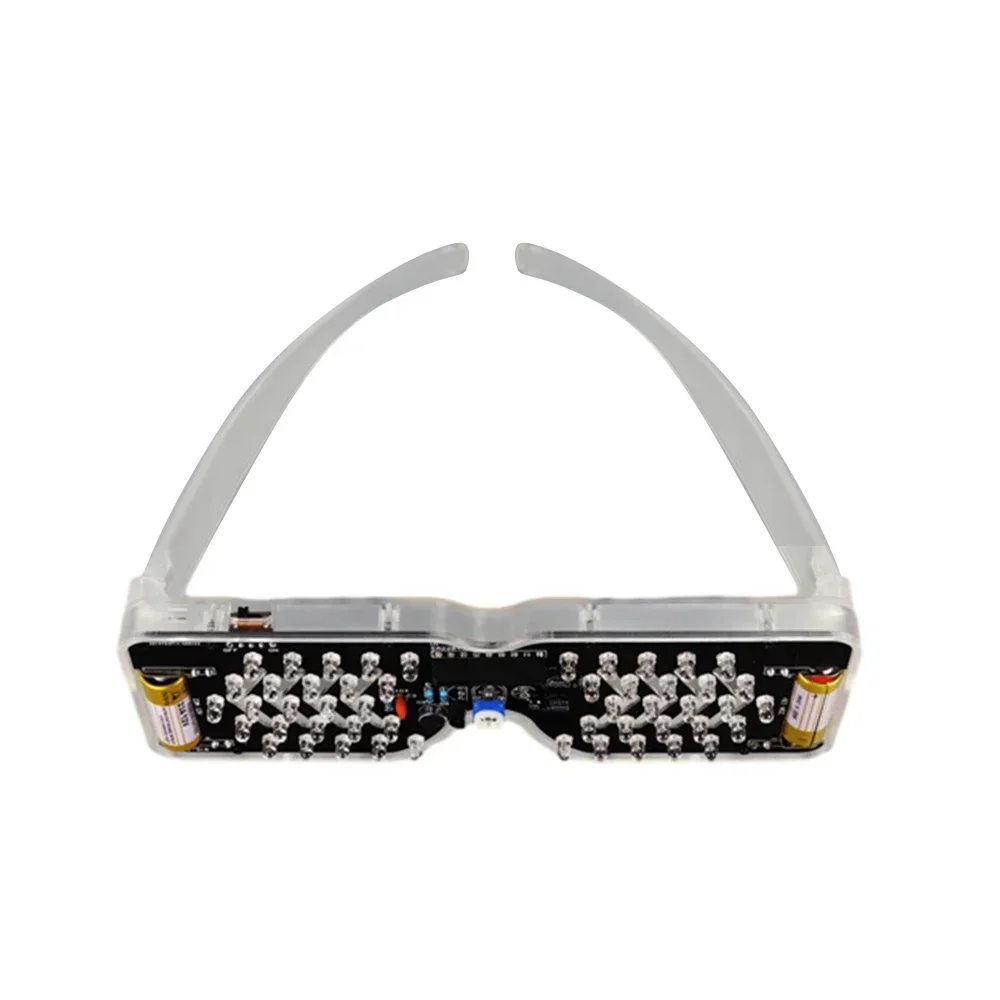

LED Light Luminous Glasses Production Kit Voice Control DIY Electronic Kit Diode Flashing Light Fun Welding Soldering Practice

Description:

1. Voice managed LED glasses, which might management LED flashing by means of speech or music

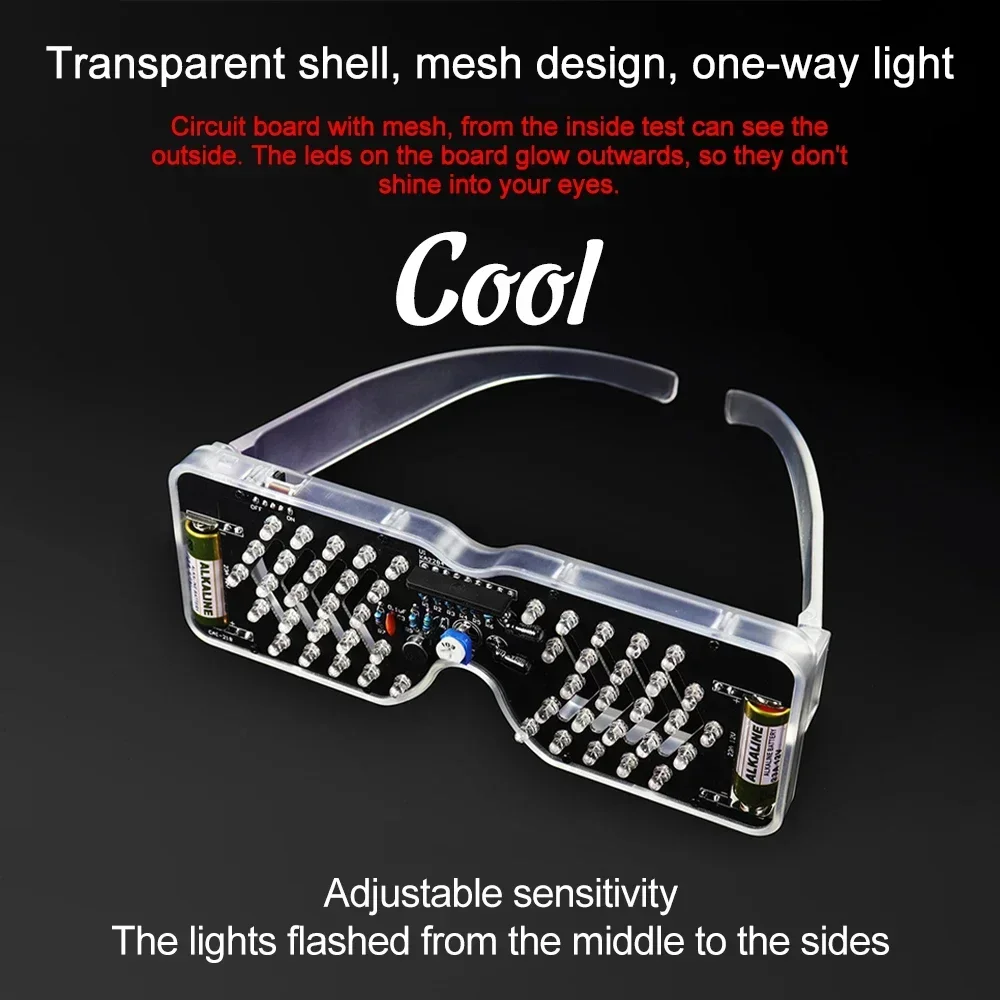

2. Transparent shell, mesh design, seen from the within to the surface

3. The LED on the circuit board emits gentle in the direction of the surface and won’t illuminate the eyes

4. The product sensitivity is adjustable, and the sunshine flashes from the center to each side

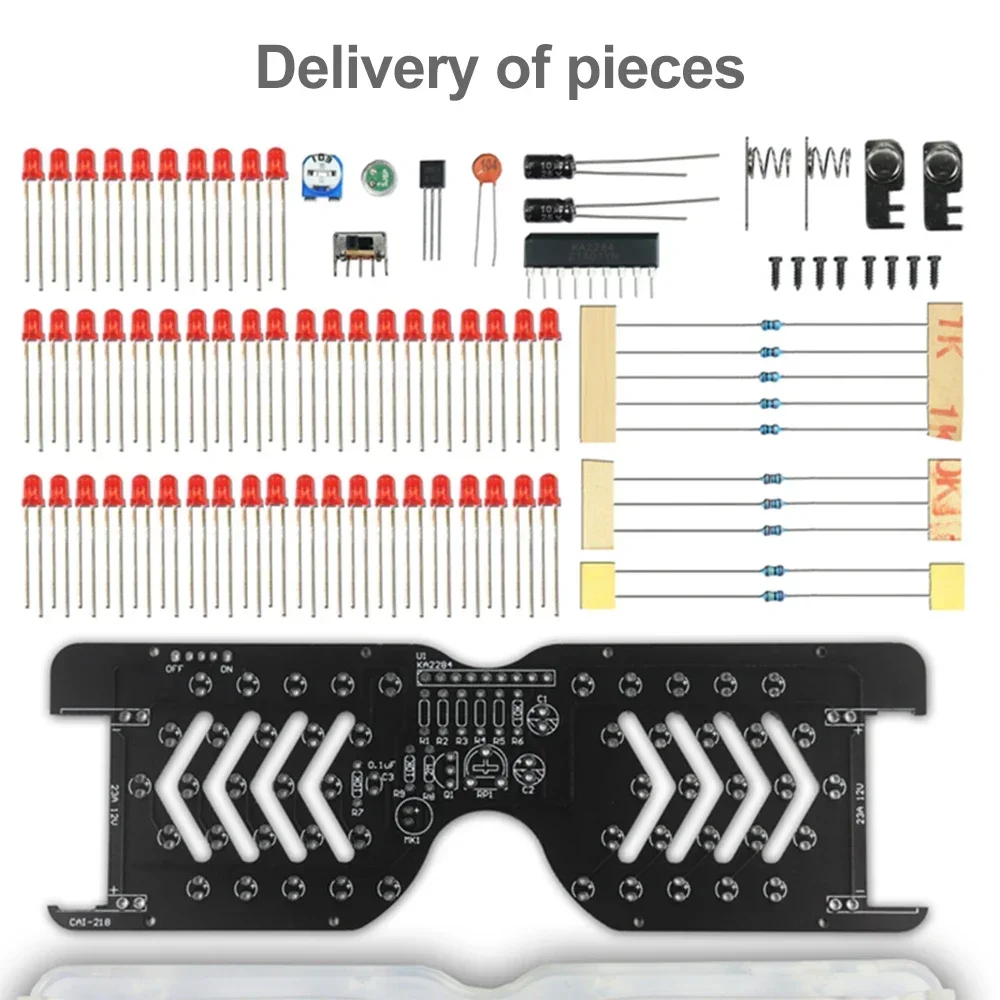

5. Assemble it your self and benefit from the enjoyable of DIY

Parameters:

Product Name: Voice LED Luminous Glasses Kit

Power provide technique: 2 23A batteries (not included within the cargo)

Working voltage: 12V

Shipping technique: unfastened cargo

Working present: 15mA

Shell materials: clear ABS

Number of lamp beads: 50

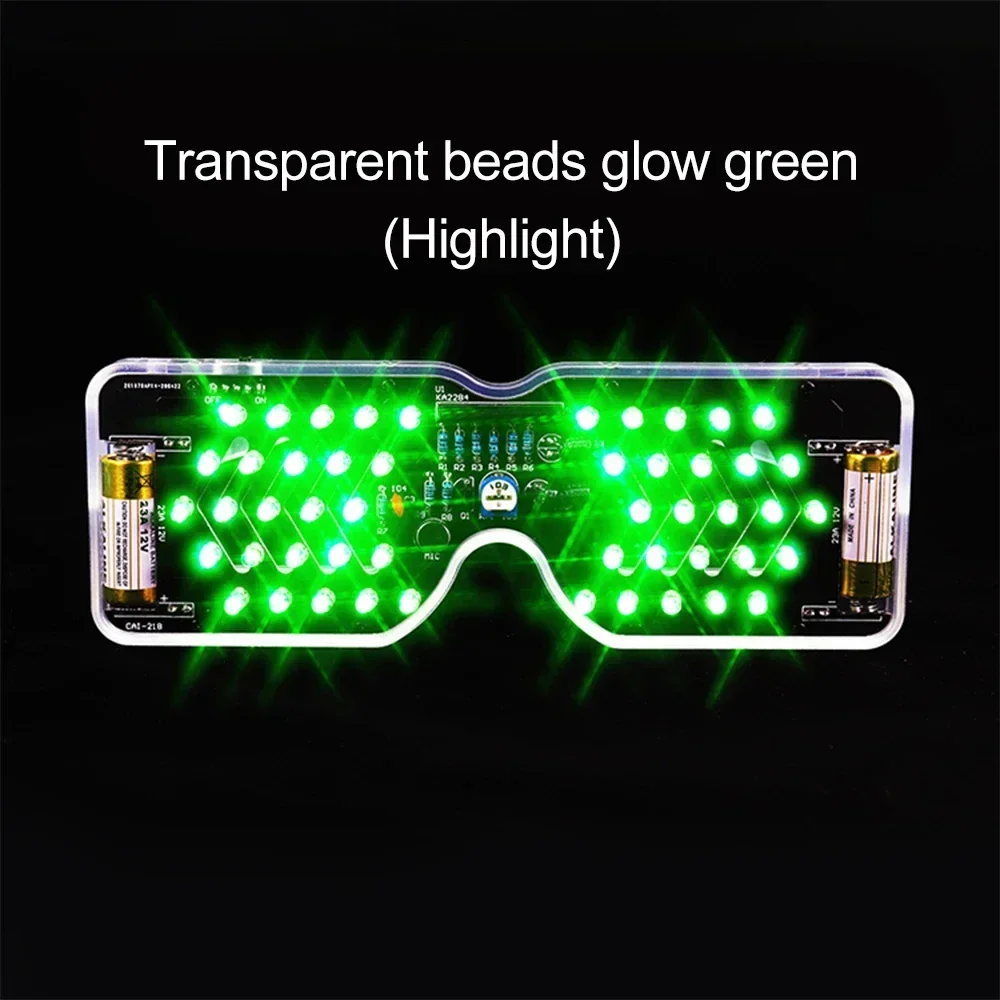

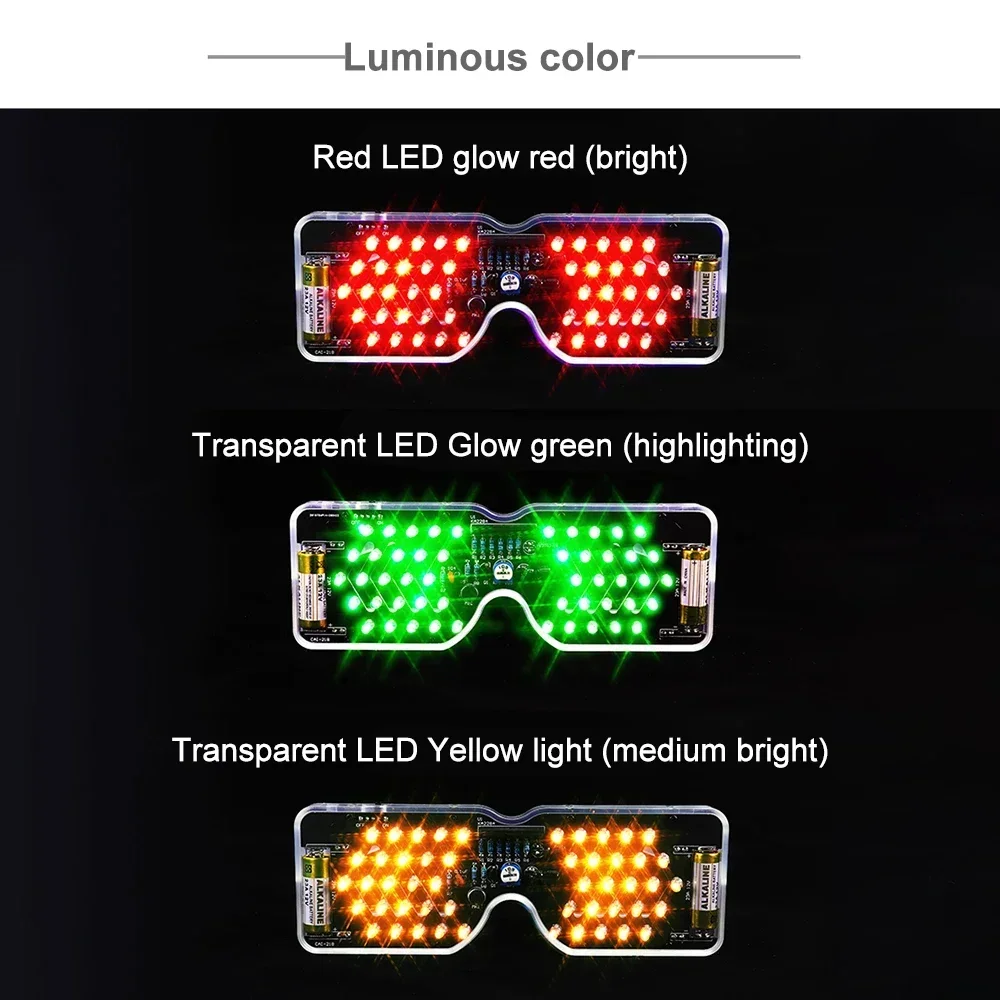

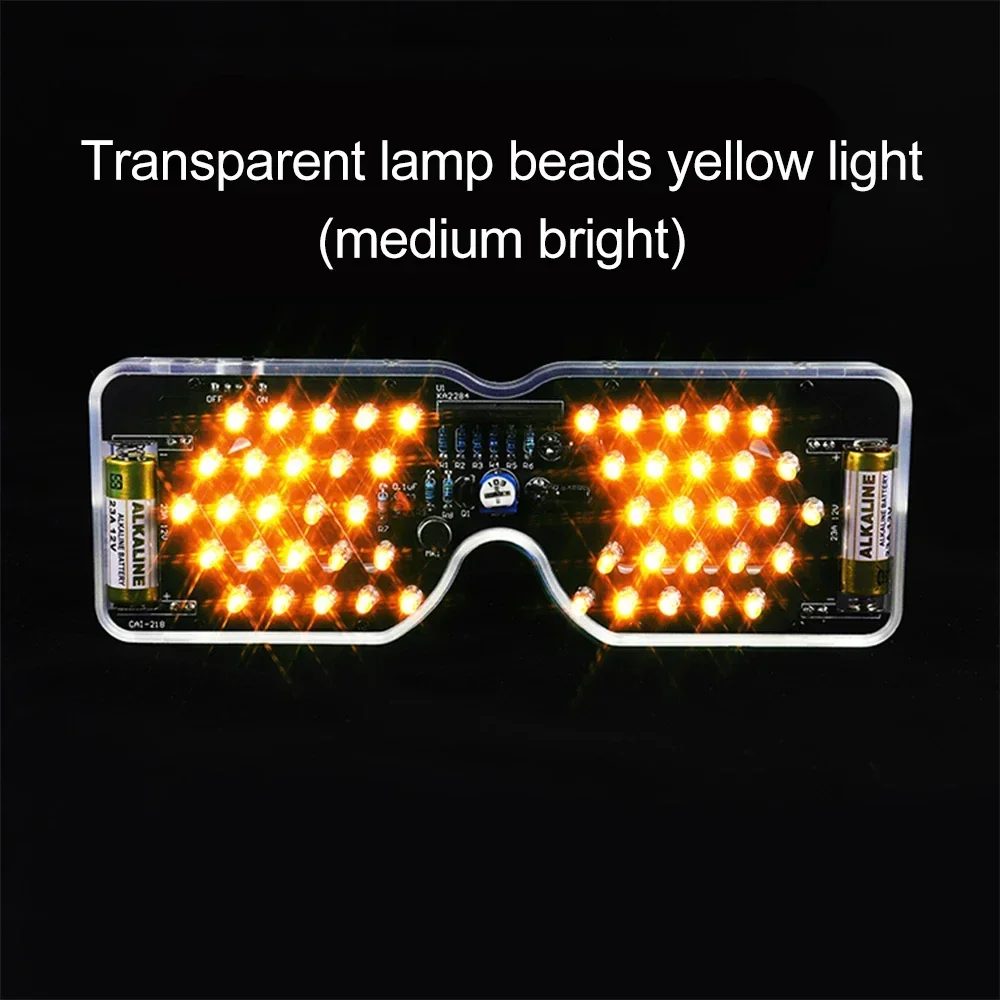

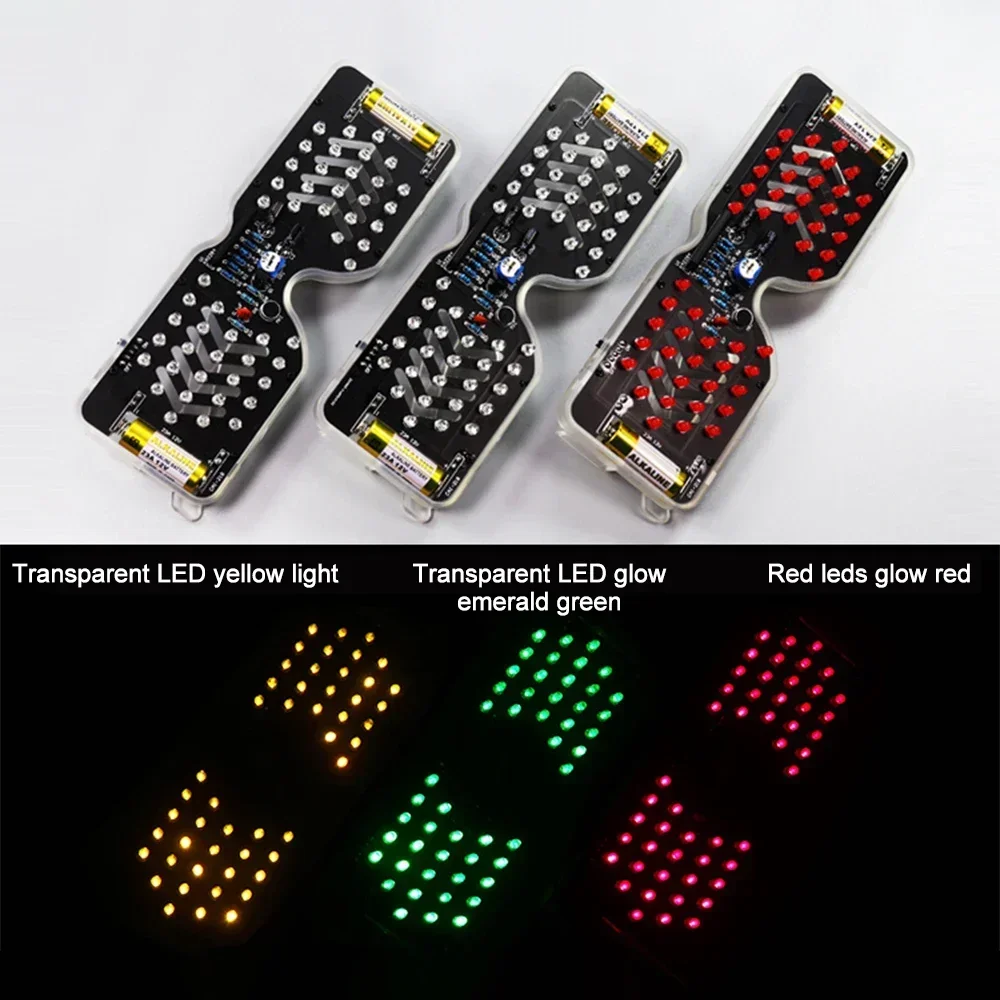

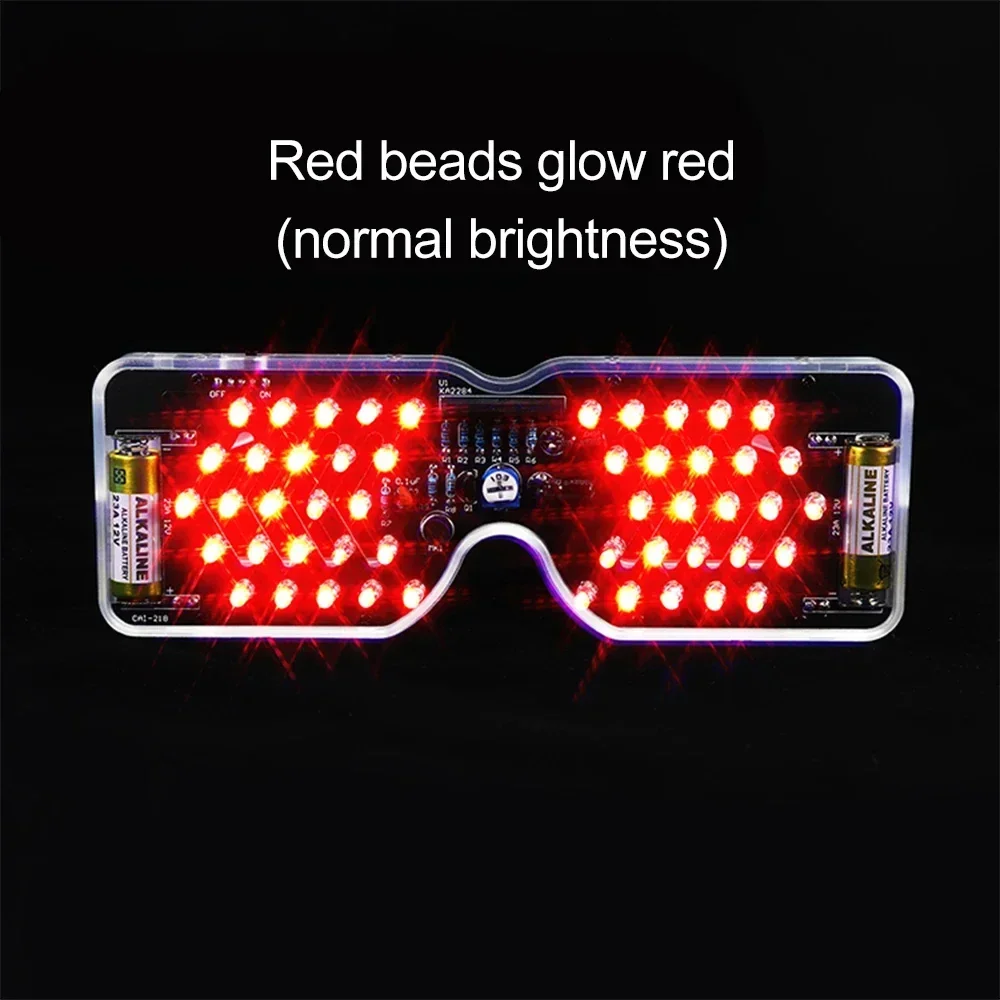

Luminous colours: crimson, emerald inexperienced, yellow

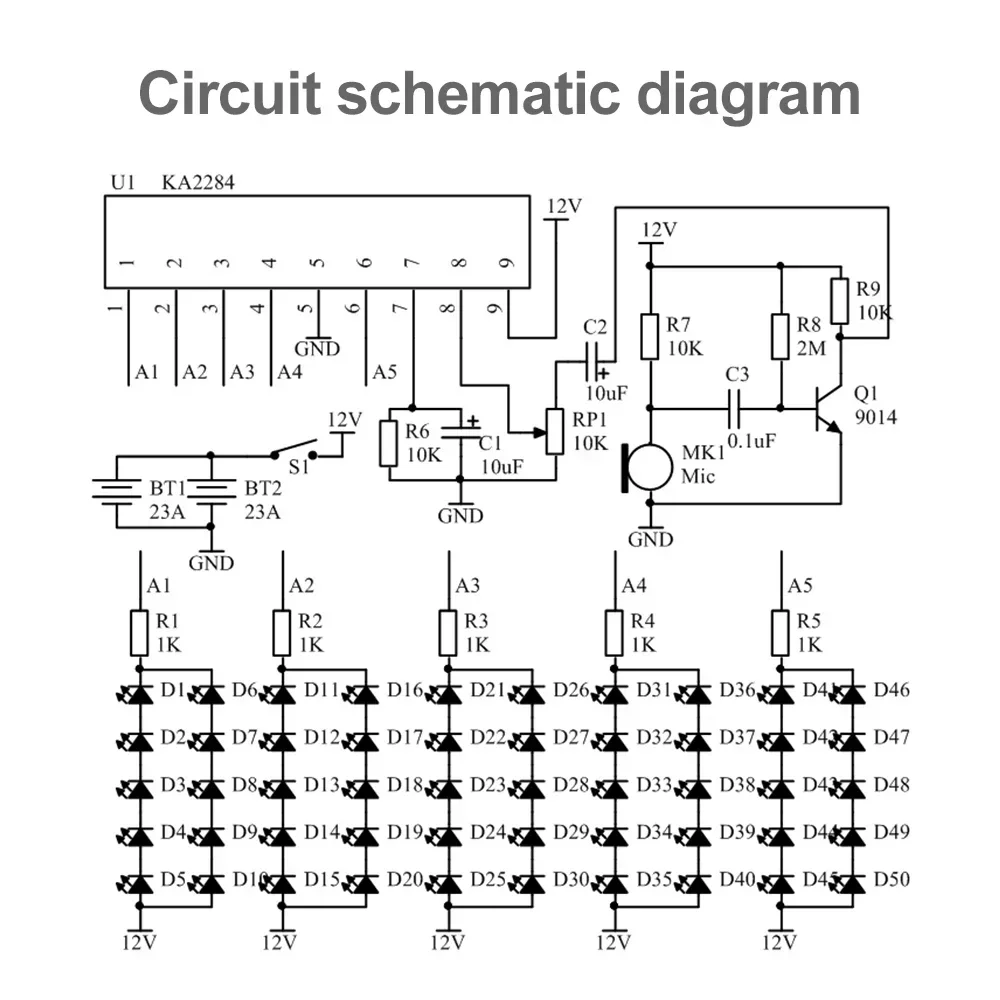

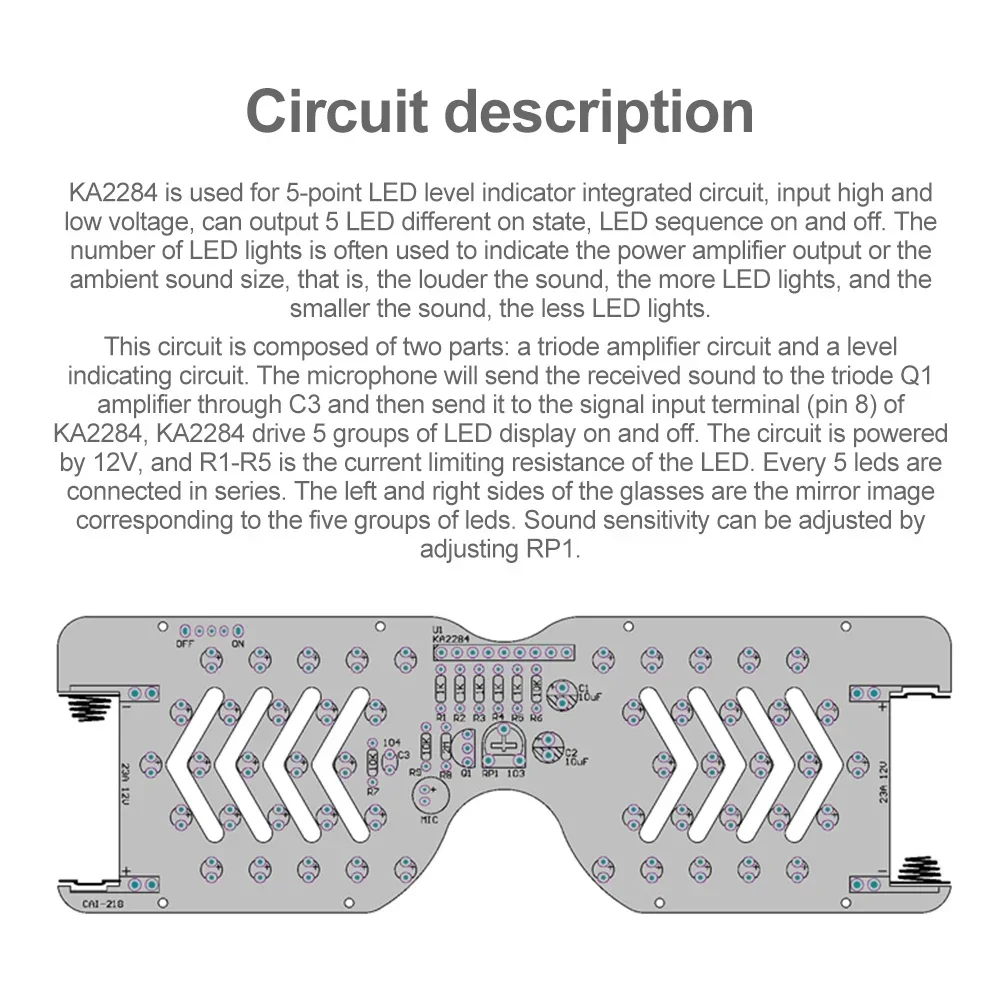

Circuit description:

KA2284 is an built-in circuit used for 5-point LED degree indication. Input completely different voltages, you’ll be able to output completely different lighting states of 5 LEDs, and the LEDs will activate and off in sequence. The variety of LED lights is often used as an indicator of amplifier output or ambient sound degree, that’s, the louder the sound, the extra LED lights up, the smaller the sound, and the much less LED lights up.

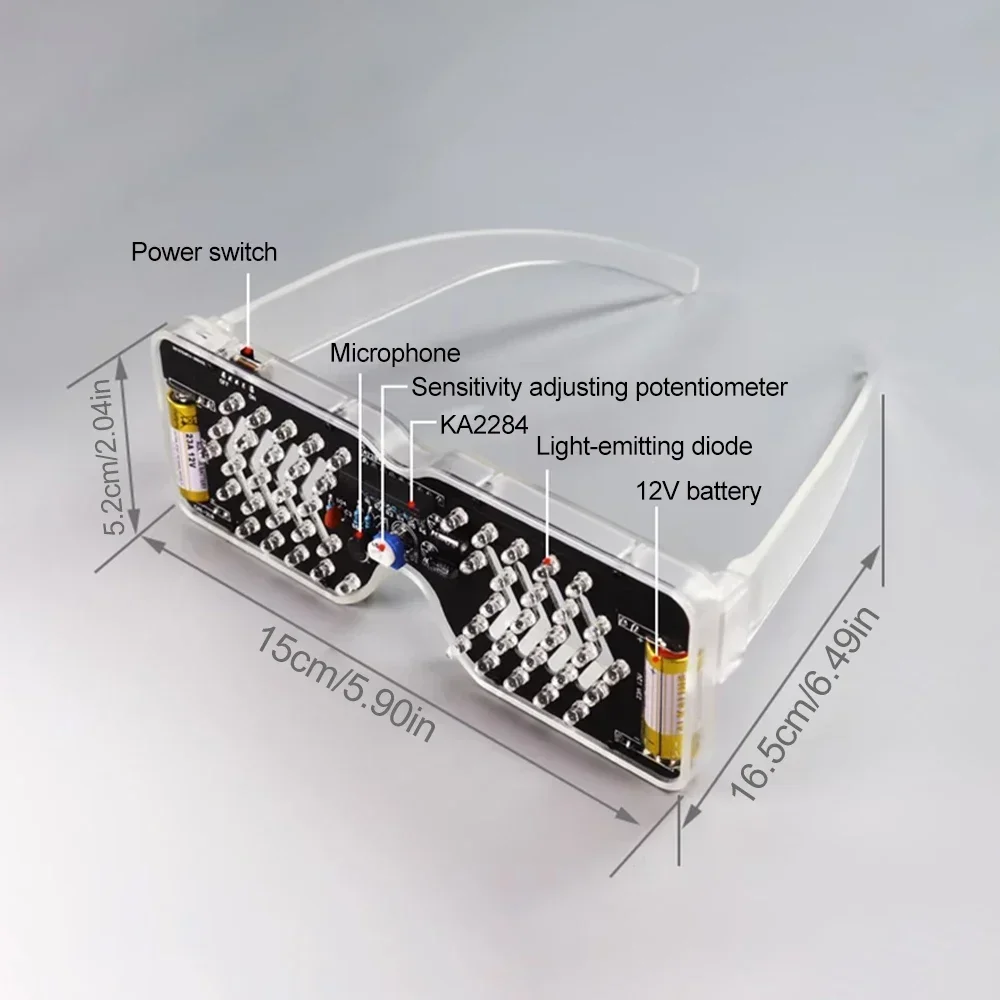

This circuit consists of two elements: a transistor amplification circuit and a degree indication circuit. The microphone sends the acquired sound by means of C3 to the transistor Q1 for amplification after which to the sign enter terminal (8 pins) of KA2284. KA2284 drives 5 units of sunshine emitting diodes to show on and off. The circuit energy provide is 12V, and R1-R5 is the present limiting resistor of the LED, with each 5 LED linked in collection. The left and proper sides of the glasses are mirrored with 5 units of sunshine emitting diodes. Adjusting RP1 can modify the sound sensing sensitivity.

Package included:

1 x LED Light Luminous Glasses Production Kit Voice Control DIY Electronic Kit Diode Flashing Light Fun Welding Soldering Practice
